Expansion valve

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The expansion valve restricts and controls refrigerant flow to the evaporator thus lowering refrigerant temperature and pressure.

NOTE: The R-134a expansion valve is identified with a green adhesive label.

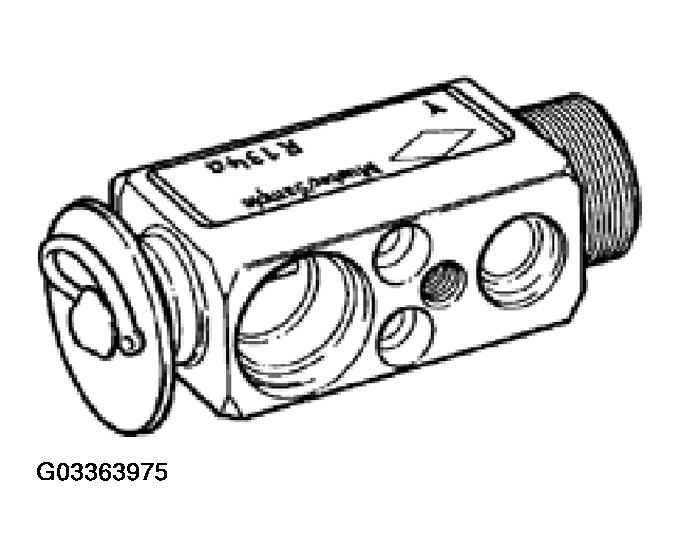

Fig 1: Identifying Expansion Valve
G03363975Courtesy of VOLKSWAGEN OF AMERICA, INC.
