A/C refrigerant system, component functions: Evaporator

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Liquid refrigerant entering the evaporator absorbs heat from air passing through the evaporator fins and cools the air. As the refrigerant absorbs heat it turns to vapor and then is suctioned by the compressor.

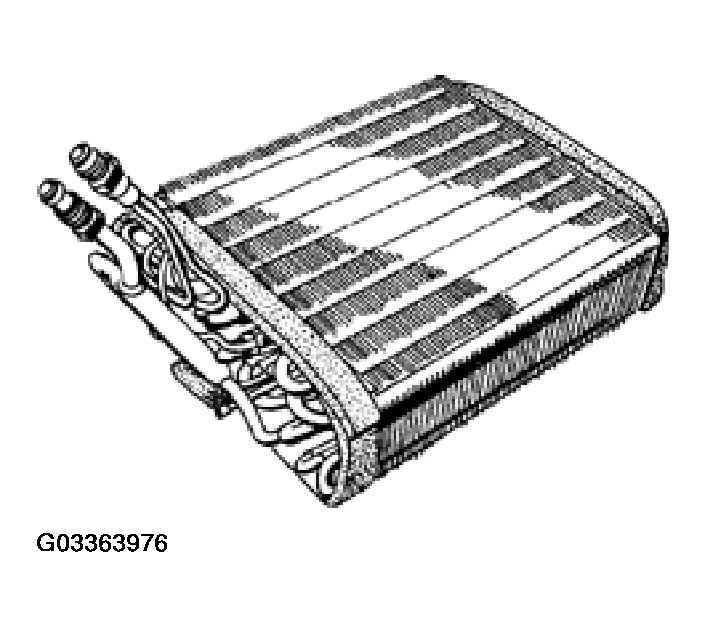

Fig 1: Identifying Evaporator
G03363976Courtesy of VOLKSWAGEN OF AMERICA, INC.
