A/C refrigerant system, component functions: Condenser

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The condenser transfers heat from the compressed refrigerant gas to the outside air which causes the refrigerant to change state from a gas to a liquid.

NOTE: The condenser for the R-134a refrigerant system is identified with a green label.

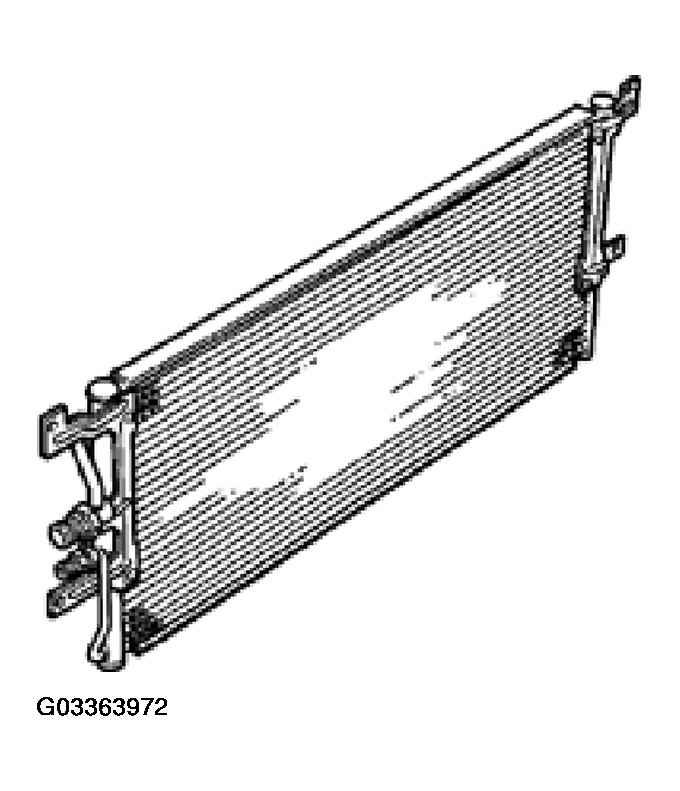

Fig 1: Identifying Condenser
G03363972Courtesy of VOLKSWAGEN OF AMERICA, INC.
