A/C refrigerant system, component functions: Compressor

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The compressor is driven via a belt on the engine when the A/C clutch engages (A/C ON).

Low-pressure refrigerant gas from the evaporator is compressed by the compressor. After compression, the refrigerant gas (now high-pressure) flows to the condenser.

NOTE:
  • The compressor contains refrigerant oil (PAG oil) that is mixable under all temperatures with R-134a refrigerant.
  • A label on the compressor indicates that compressor is for R-134a systems only.

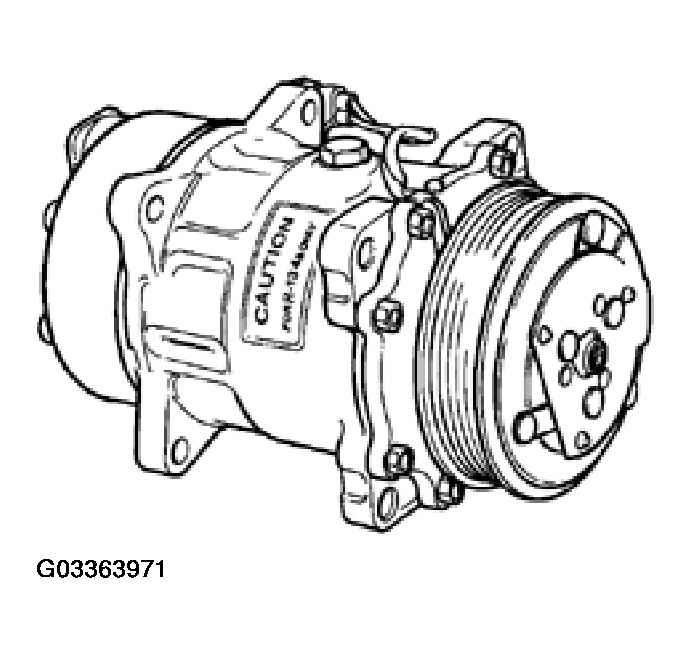

    Fig 1: Identifying Compressor
    G03363971Courtesy of VOLKSWAGEN OF AMERICA, INC.
