A/C refrigerant system pressures and temperatures, checking: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
The pressures and temperatures in the A/C system will vary depending on engine speed (RPM), coolant fan speed, engine coolant temperature, A/C clutch engagement, outside temperature, humidity, etc.
Pressure and temperature specifications are based on the following:
- Engine speed (RPM) at 1500
- Fresh air blower on high speed
- A/C switch adjusted to Max. cooling

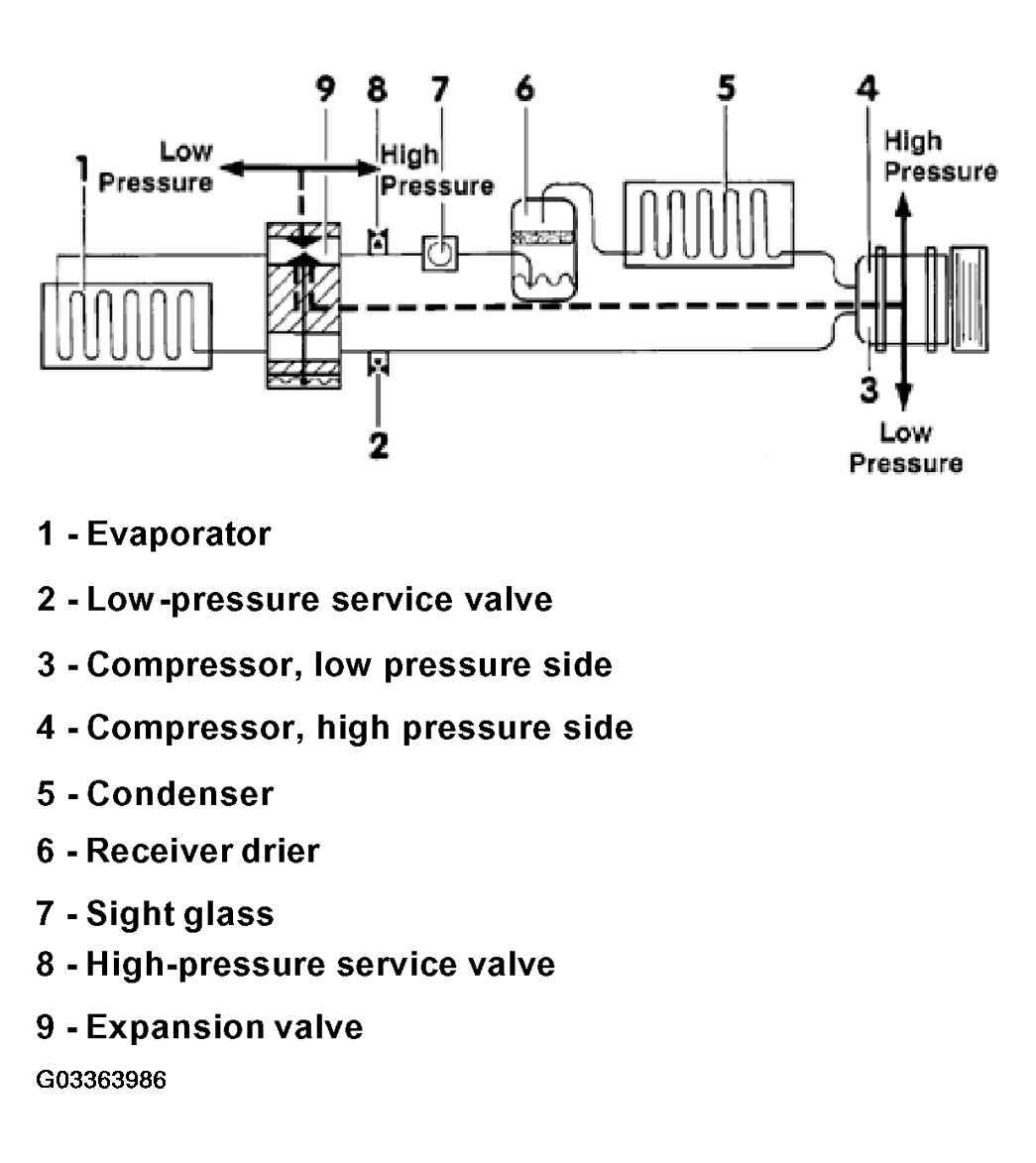

The following list pertains to Fig 1.
- Evaporator
- Low-pressure service valve
- Compressor, low pressure side
- Compressor, high pressure side
- Condenser
- Receiver drier
- Sight glass
- Not applicable to all vehicles
- High-pressure service valve
- Expansion valve
