Removing and installing fresh air blower series resistance -N24- (with A/C)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove glove compartment.
Disconnect connector -2- and remove screw -3-.
Remove series resistance -1-.
Install in reverse order of removal noting following:
- Apply adhesive Part No. AMV 176 000 05 or equivalent to mating surface before installing.

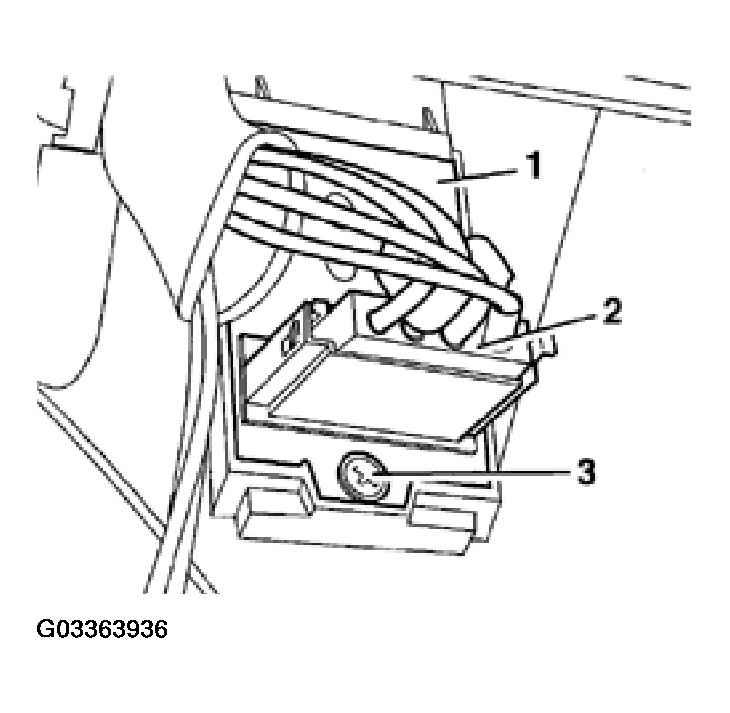

Fig 1: Removing Fresh Air Blower Series Resistance N24 (With A/C)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION: Part numbers are for reference only. Always check with your Parts Department for latest parts information.
