Removing and installing A/C evaporator temperature switch -E33-

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
  1. - A/C evaporator temperature switch -E33- and cover
  2. - Rubber grommet
  3. - Sensor tube and tape

    Install tape on sensor tube 330 mm (13.0 in.) from end to mark insertion depth of tube into evaporator

  4. - Self-tapping screw
  5. - Wire connector
NOTE: Wire connector -5- can temporarily be bridged during troubleshooting procedures.

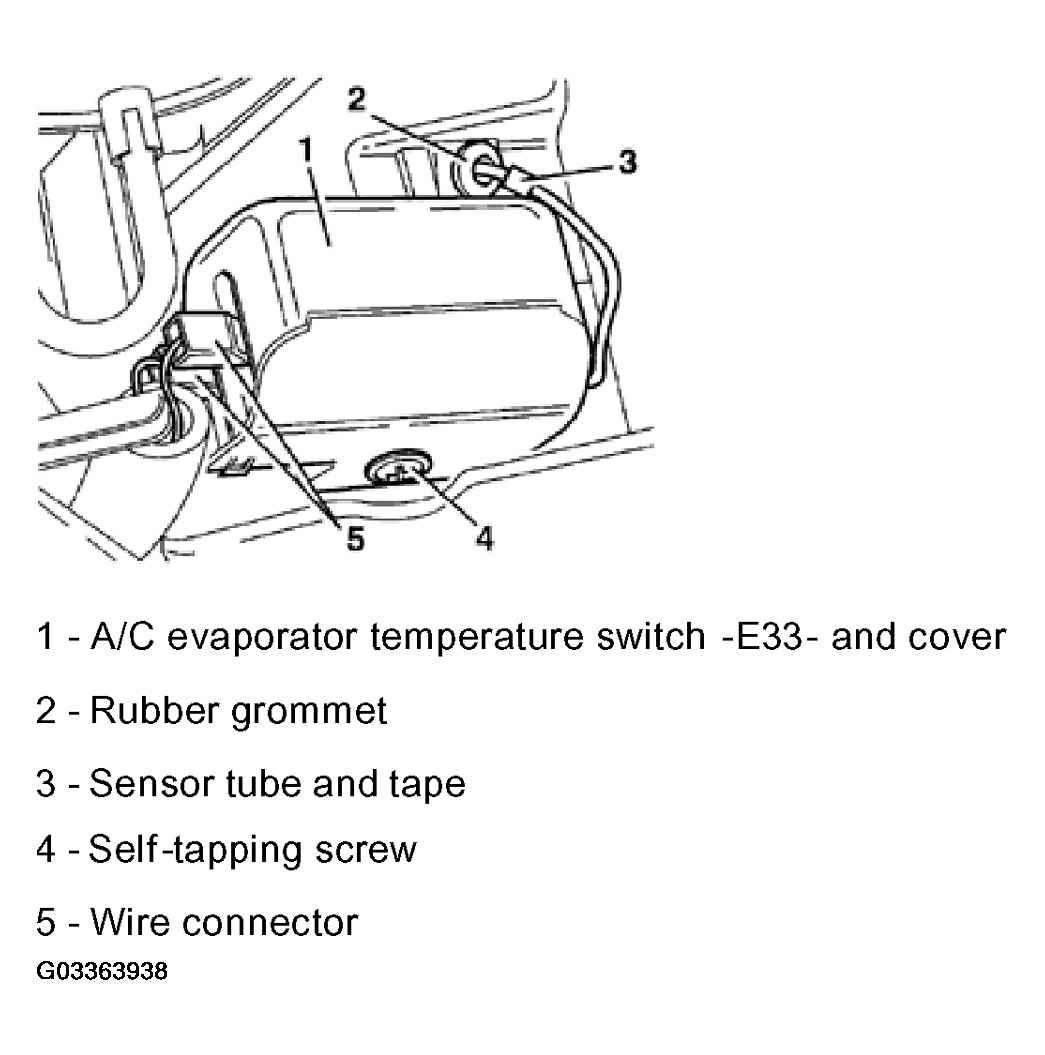

Fig 1: Removing A/C Evaporator Temperature Switch E33
G03363938Courtesy of VOLKSWAGEN OF AMERICA, INC.
