A/C compressor bracket, removing and installing - Sanden compressor (engine codes ABA, ACC) 12.95 And Up
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Part numbers are listed here for reference only. Always check with your Parts department for the latest information.

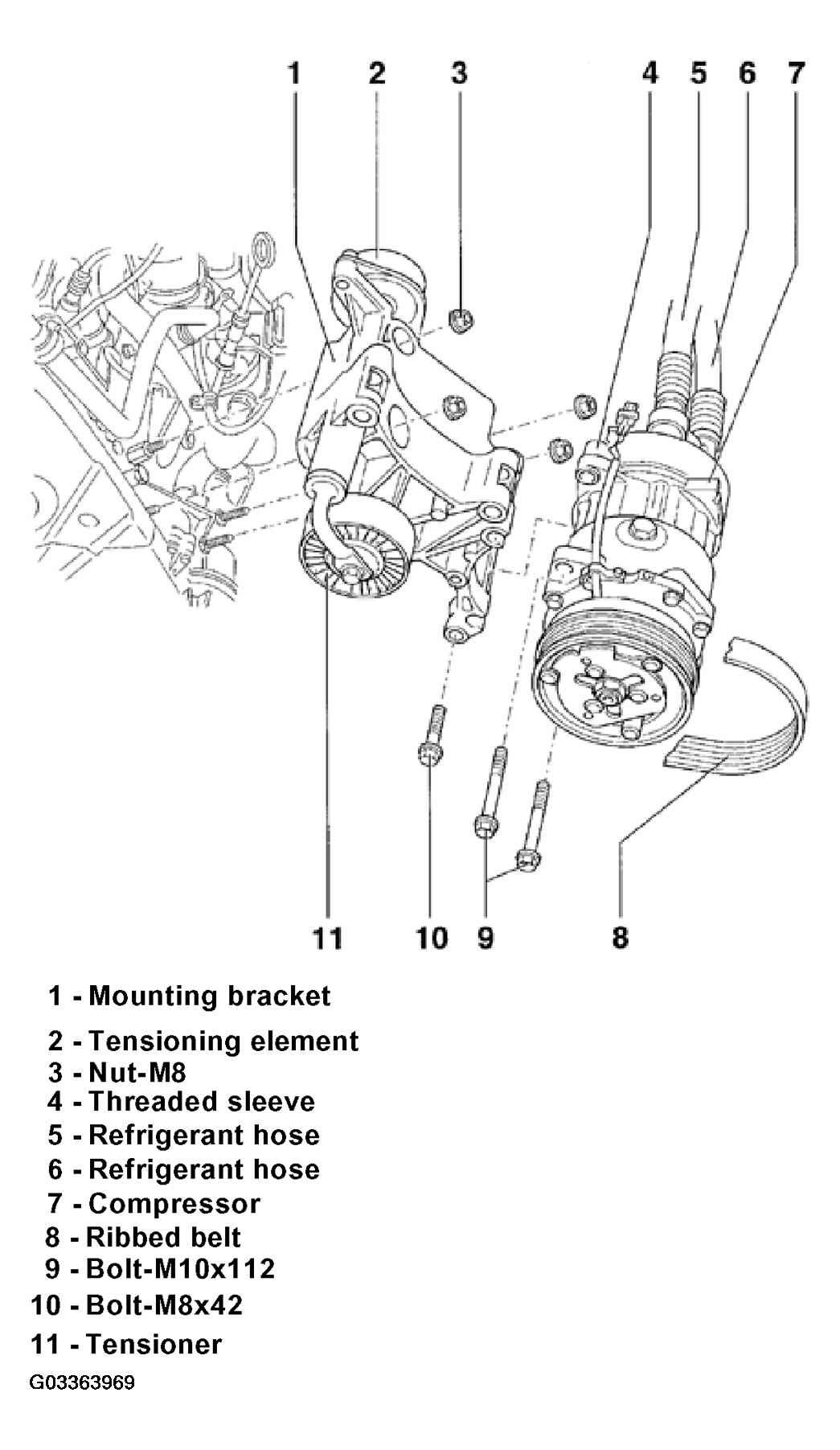

The following list pertains to Fig 1.
- Mounting bracket
- For Generator (GEN) and A/C compressor
- Part No. 037 903 139 F
- Removing and installing, see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY
- Tensioning element
- Part No. 037 903 315 C
- Nut-M8
- Part No. N 902 291 01
- 30 N.m (22 ft lb)
- Qty.: 4
- Threaded sleeve
- Refrigerant hose
- Expansion valve/compressor
- Part No. 1H1 820 743 P
- Refrigerant hose
- Compressor/condenser
- Part No. 1H0 820 721 C
- Compressor
- Part No. 1H0 820 803 D
- To remove, loosen bolt -9- approx. two turns and drive threaded sleeve -4- back on compressor, then remove bolts
- Ribbed belt
- Part No. 037 260 849 C
- Removing and installing, see POLY-RIBBED BELT, REMOVING AND INSTALLING
- Bolt-M10x112
- 45 N.m (33 ft lb)
- Part No. N102 098 01
- Bolt-M8x42
- 25 N.m (18 ft lb)
- Part No. N 010 353 3
- Tensioner
- Part No. 028 145 278 E
