A/C compressor bracket, removing and installing - 4-cyl. gasoline (engine codes ABA, ACC)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The A/C compressor mounting bracket can be removed and installed without discharging the A/C system.

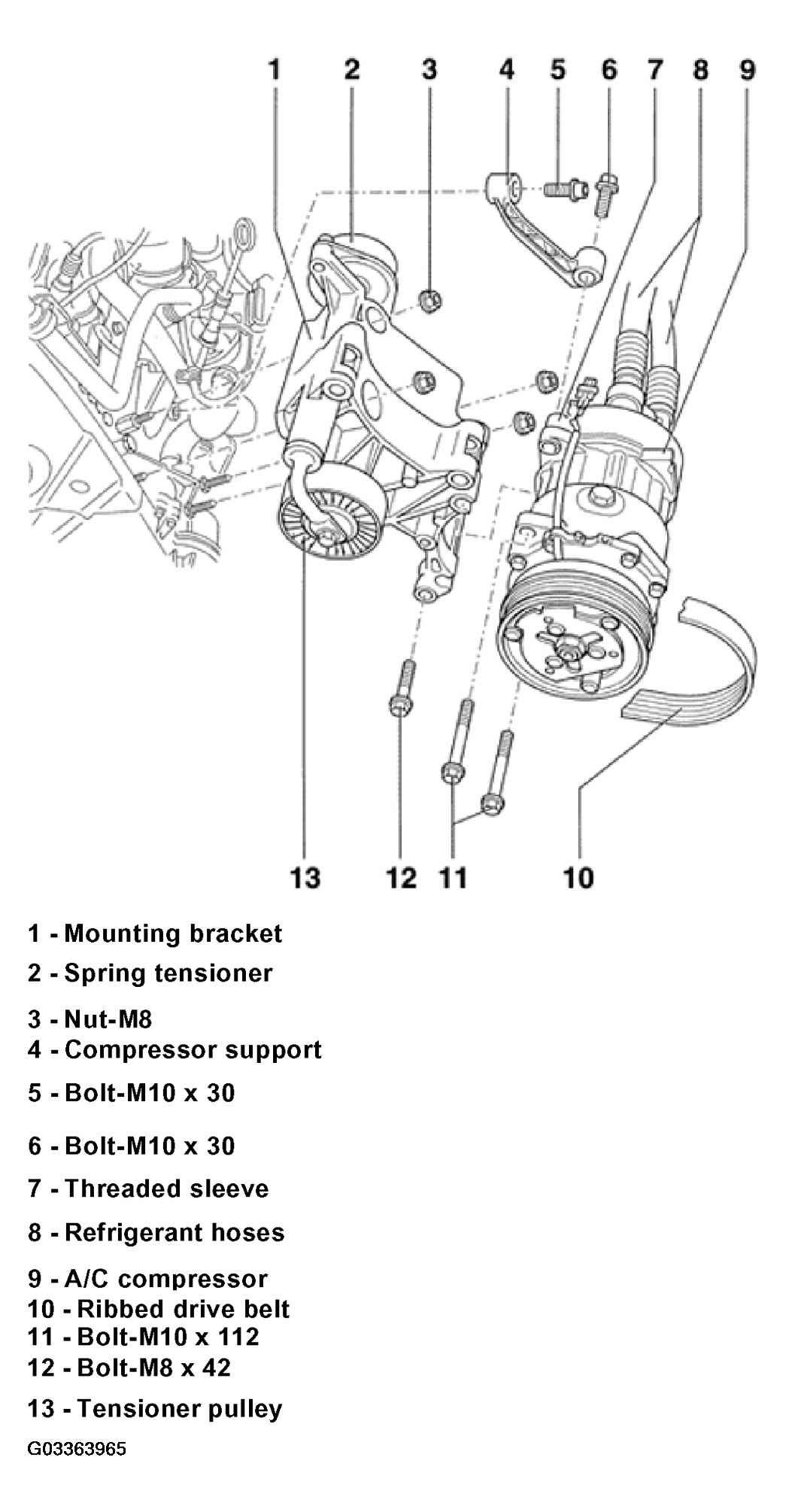

The following list pertains to Fig 1.
- Mounting bracket
- For Generator (GEN) and A/C compressor
- Generator (GEN) removing and installing, see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY
- Spring tensioner
- Nut-M8
- 30 N.m (22 ft lb)
- Compressor support
Installing:
- Install support using bolts -5- and -6-; do not tighten.
- Thread bolt -6- into threaded sleeve -7- until support contacts sleeve.
- Tighten bolt -5-; tightening torque 45 N.m (33 ft lb).
- Tighten bolt -6-; tightening torque: 45 N.m (33 ft lb).
- Bolt-M10 x 30
- 45 N.m (33 ft lb)
- Bolt-M10 x 30
- 45 N.m (33 ft lb)
- Threaded sleeve
- Refrigerant hoses
- A/C compressor
Removing from bracket:
- Remove support -4-.
- Loosen bolts -11- but do not remove.
- Drive threaded sleeve -7- back.
- Completely remove bolts -11- then remove compressor from bracket.
- Ribbed drive belt
- If used belt is to be reinstalled: mark running direction of belt before removing and reinstall in same running direction
- Removing/installing Repair Manual, General, Engine, Repair Group 13
- Bolt-M10 x 112
- 45 N.m (33 ft lb)
- Bolt-M8 x 42
- 25 N.m (18 ft lb)
- Tensioner pulley
