A/C compressor bracket, removing and installing - 4-cyl. Turbo Diesel (engine codes AAZ, 1Z)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The A/C compressor mounting bracket can be removed and installed without discharging the A/C system.

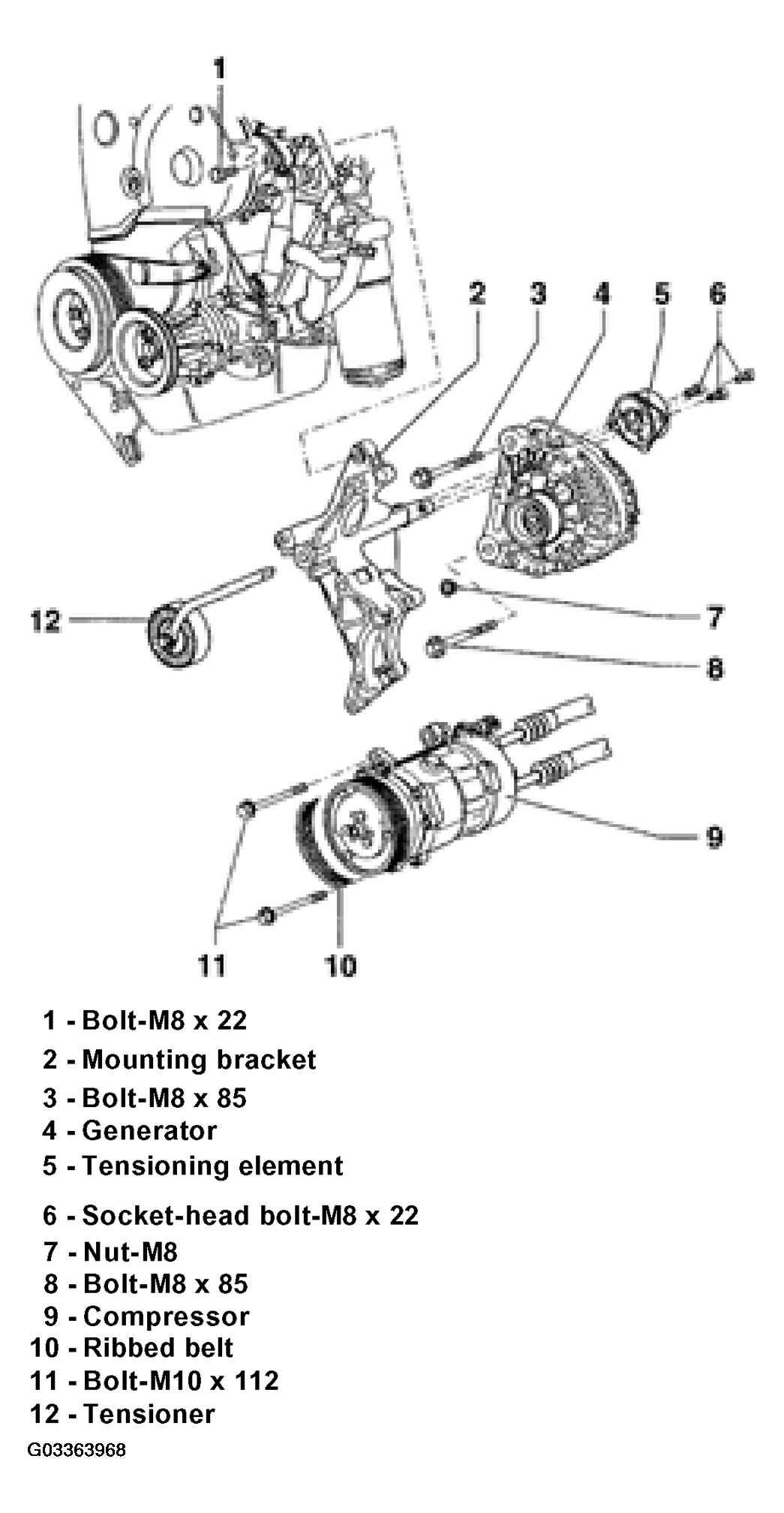

The following list pertains to Fig 1.
- Bolt-M8 x 22
- 25 N.m (18 ft lb)
- Mounting bracket
- For Generator (GEN) and A/C compressor
- Removing: remove generator -4- and A/C compressor -9-.
- Bolt-M8 x 85
- 25 N.m (18 ft lb)
- Generator
- Removing/installing, see GENERATOR (GEN) WITH RIBBED BELT AND MOUNTING BRACKET, ASSEMBLY
- Tensioning element
- Socket-head bolt-M8 x 22
- Qty.: 3
- 25 N.m (18 ft lb)
- Nut-M8
- Qty.: 4
- 30 N.m (18 ft lb)
- Bolt-M8 x 85
- 25 N.m (18 ft lb)
- Compressor
Removing:
- Loosen hex-head bolts -11- approx. two turns and drive threaded sleeve back on compressor.
- Remove bolts.
- Ribbed belt
- Removing/installing, see POLY-RIBBED BELT, REMOVING AND INSTALLING
- Bolt-M10 x 112
- Qty.: 2
- 45 N.m (33 ft lb)
- Tensioner
Removing:
- Loosen M6x16 socket head bolt on tensioning roller tensioning element.
- Drive tensioning roller back with rubber hammer.
