Front wheel house liner

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to Fig 1 .

Remove wheel.
- Tightening torque for wheel bolts: 110 N.m (81 ft lb)
Remove screws -1- (Qty. 7) from expander nuts -2- (Qty. 7).
Remove expander rivets -3- (expander rivets connect wheel house liner and front bumper cover).
Detach air guide on wheel house liner.
Pull wheel house liner out of wheel house.

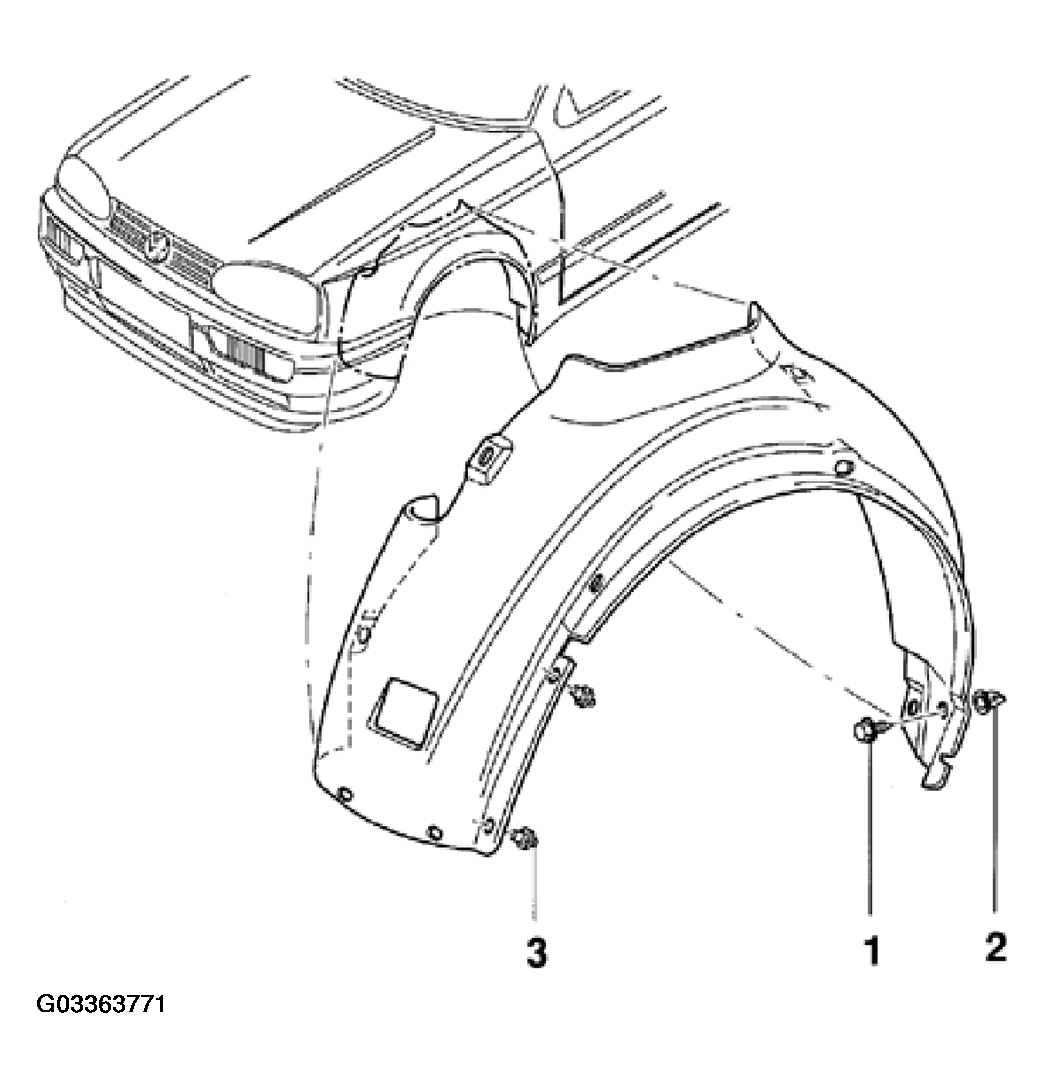

Fig 1: Removing Front Wheel Housing Liner

Courtesy of VOLKSWAGEN OF AMERICA, INC.
