Radiator grille up to 02.98, removing and installing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

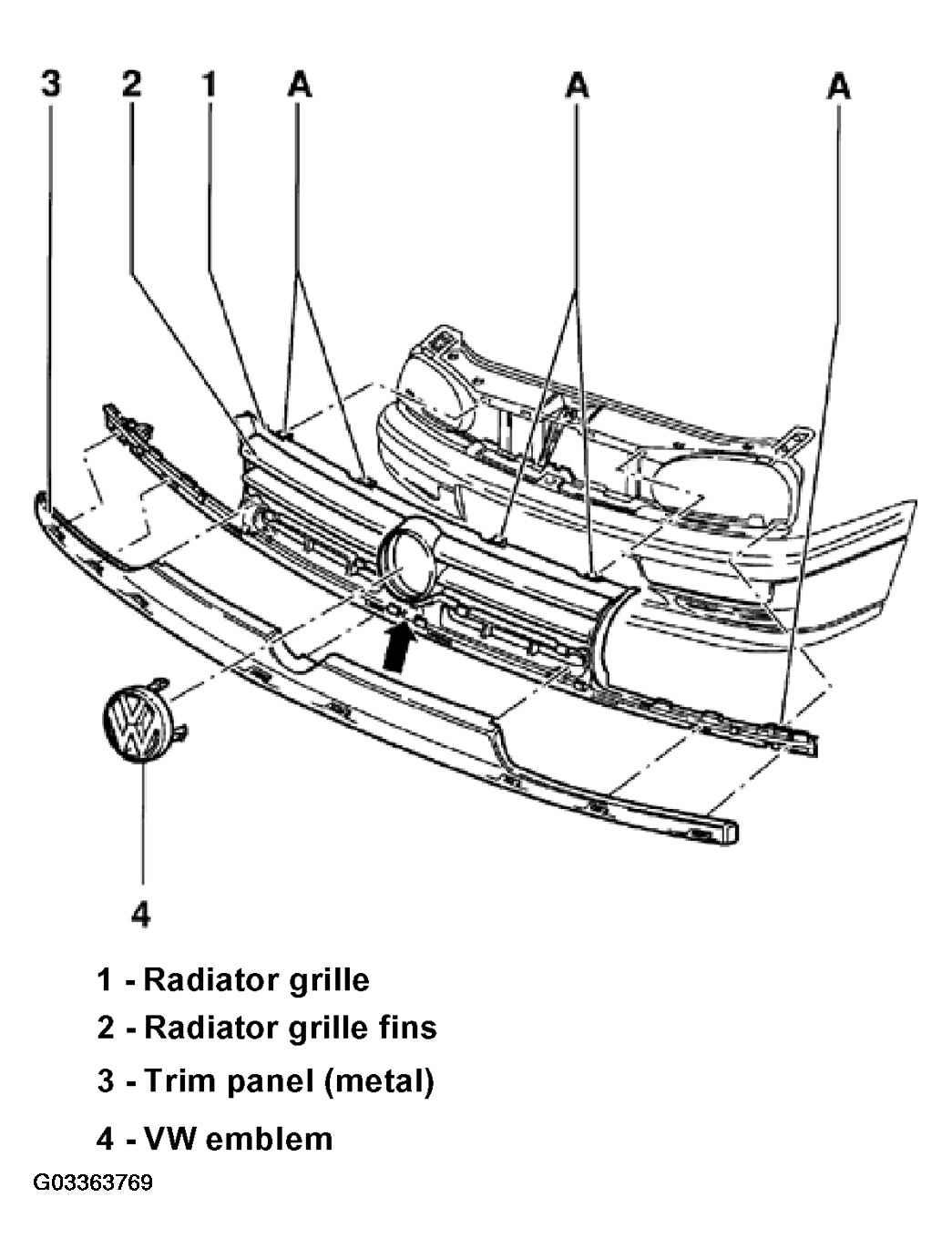

The following list refers to Fig 1
.
- - Radiator grille
- Material: ASA
- Removing: Release upper and lower locking tabs -A- with a screwdriver. Pull radiator grille up off lock carrier.
- Installing: Align radiator grille with center locator -arrow- and clip in.
- - Radiator grille fins
- Material: ABS (acrylic -nitrile butadiene-styrene copolymeride)
- Fins clip into radiator grille.
- Fins painted in body color.
- - Trim panel (metal)
- Removing: Remove radiator grille and unclip trim panel from radiator grille.
- Trim panel painted in body color.
- - VW emblem
- Clip into radiator grille
