Radiator grille from 03.98 and up, removing and installing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

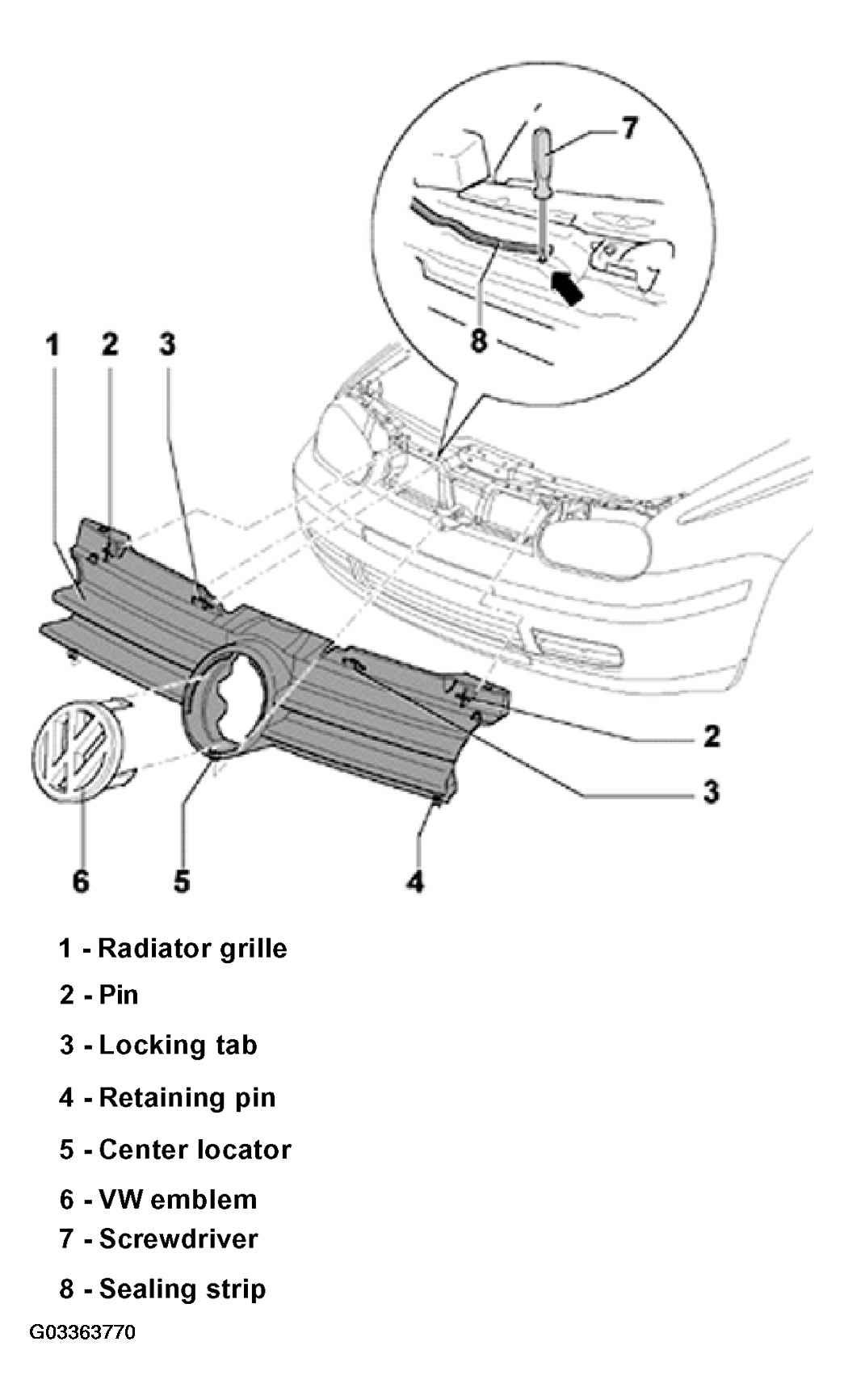

The following list refers to Fig 1
.
- - Radiator grille
- Material: ASA
- Removing:
- Loosen sealing strip - 8 -.
- Release locking hook - 3 - with a screwdriver through hole -arrow-.
- Pull pins - 2 - out from lock carrier and remove radiator grille up.
- Installing: Align radiator grille with center locator - 5 -, insert lower pin - 4 - into bumper cover and clip in upper area.
- - Pin
- - Locking tab
- - Retaining pin
- - Center locator
- - VW emblem
- Clip into radiator grille
- - Screwdriver
- - Sealing strip
