Rear bumper up to 02.98, assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1 .

- Bumper
- Cover: Material: PP/EPDM
  - Removing and installing rear bumper. See Rear bumper up to 02.98, removing and installing .
- Nut, 25 N.m (18 ft lb)
- Deformation element
- Guide
- Sealing washer (plastic)
- Clip
- Cover/towing eye
- Bolts, 4.5 N.m (40 in. lb)
- Tow bar cover
- Covers for upper bolts

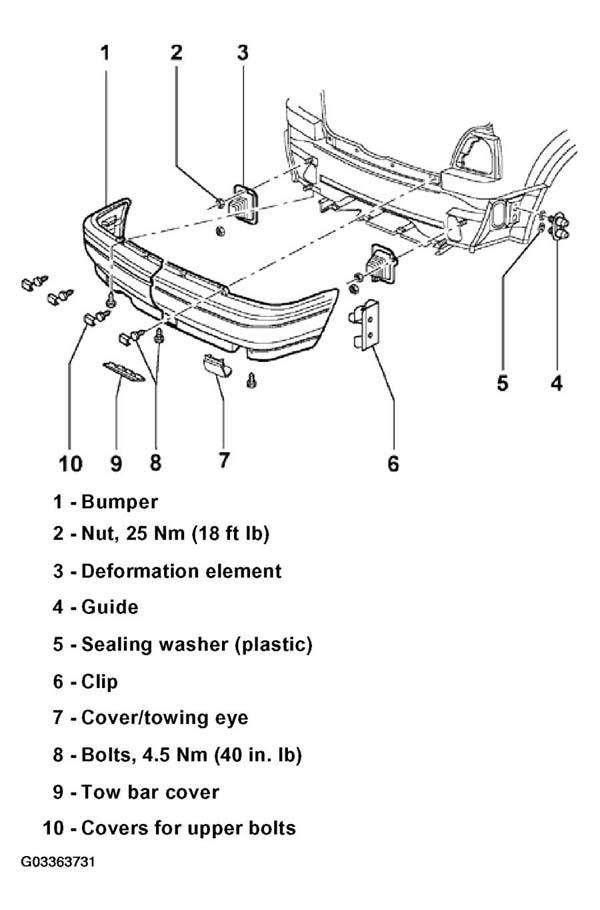

Fig 1: Identifying Rear Bumper Assembly Components (Up To 02.98)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
