Bumper impact beam 03.98 and up, assembly overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1 .

- Bumper impact beam
- Removing:
  - Removing and installing cover for rear bumper, see Bumper cover 03.98 and up, removing and installing
  - Remove nuts - 2 - and pull off bumper cover.
- Nut
- Qty. 4
- 20 N.m (15 ft lb)
- Bolt
- Qty. 6
- 1.2 N.m (11 in. lb)
- Guide
- Spreader nut
- Qty. 6
- Spreader nut
- Qty. 5
- Securing strip
- Bolt
- Qty. 5
- 1.2 N.m (11 in. lb)

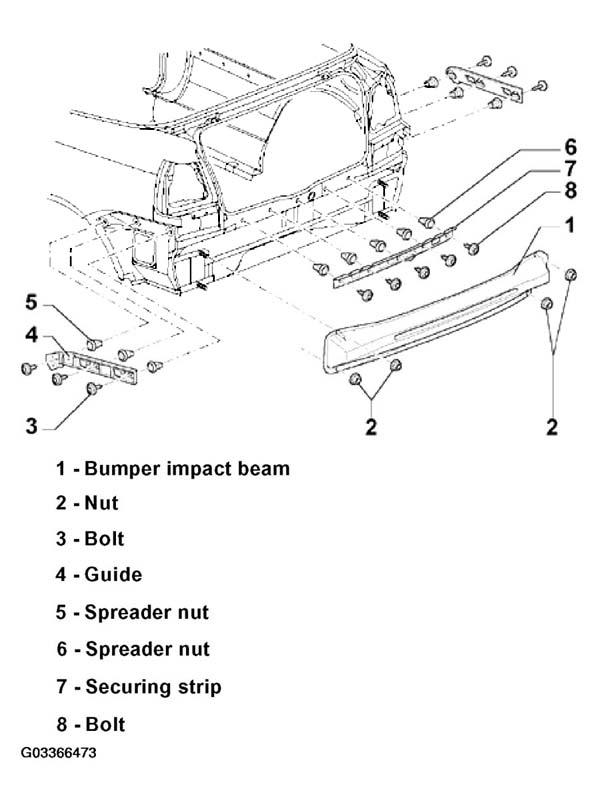

Fig 1: Identifying Rear Bumper Impact Beam Assembly Components (03.98 And Up)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
