Pull rod, adjusting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pull rod must be adjusted each time it is removed and installed or when repairs are performed.

Secure locking link: Insert 3.2 mm dia. (0.125 in.) drill -1- into lock hole.

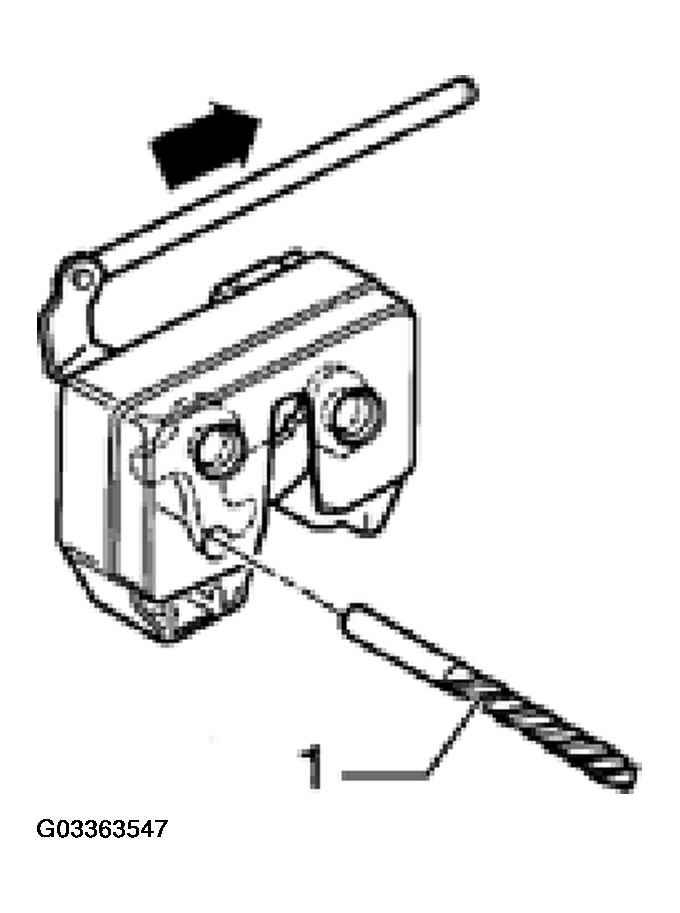

Fig 1: Securing Locking Link

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Draw pull rod in direction of arrow against resistance of drill.
Press pull rod in and close hinged sleeve.
Pull drill out of lock.
Perform functional check.
- Locking link must spring back to end position.
