Lock, assembly overview from 03.98 and on
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

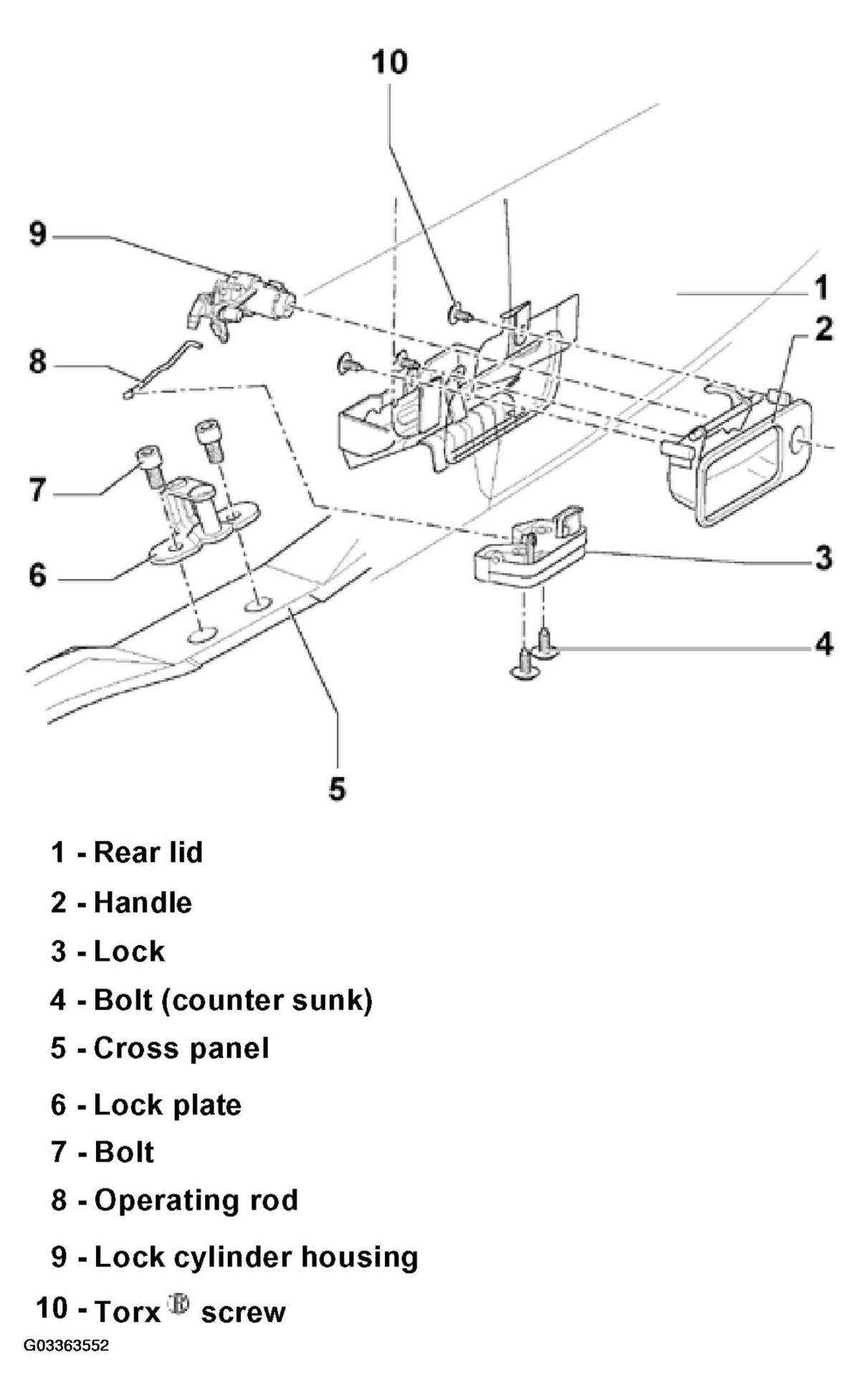

The following list refers to Fig 1
.
- - Rear lid
- - Handle
- Removing and installing, refer to HANDLE, REMOVING AND INSTALLING .
- - Lock
- Removing and installing, refer to REAR LID, REMOVING AND INSTALLING LOCK FROM 03.98 AND ON .
- - Bolt (counter sunk)
- 20 N.m (15 in. lb)
- - Cross panel
- - Lock plate
- Adjusting, within oversized holes
- Gaps/mating lines
- - Bolt
- 20 N.m (15 ft lb)
- - Operating rod
- - Lock cylinder housing
- Removing and installing, refer to LOCK CYLINDER HOUSING, REMOVING AND INSTALLING .
- - Torx(R) screw
- 4 N.m (35 in. lb)
