Lock cylinder housing, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear lid trim.
Disconnect connector -3-.
Unclip operating rods -1- and -2- on lock cylinder housing.

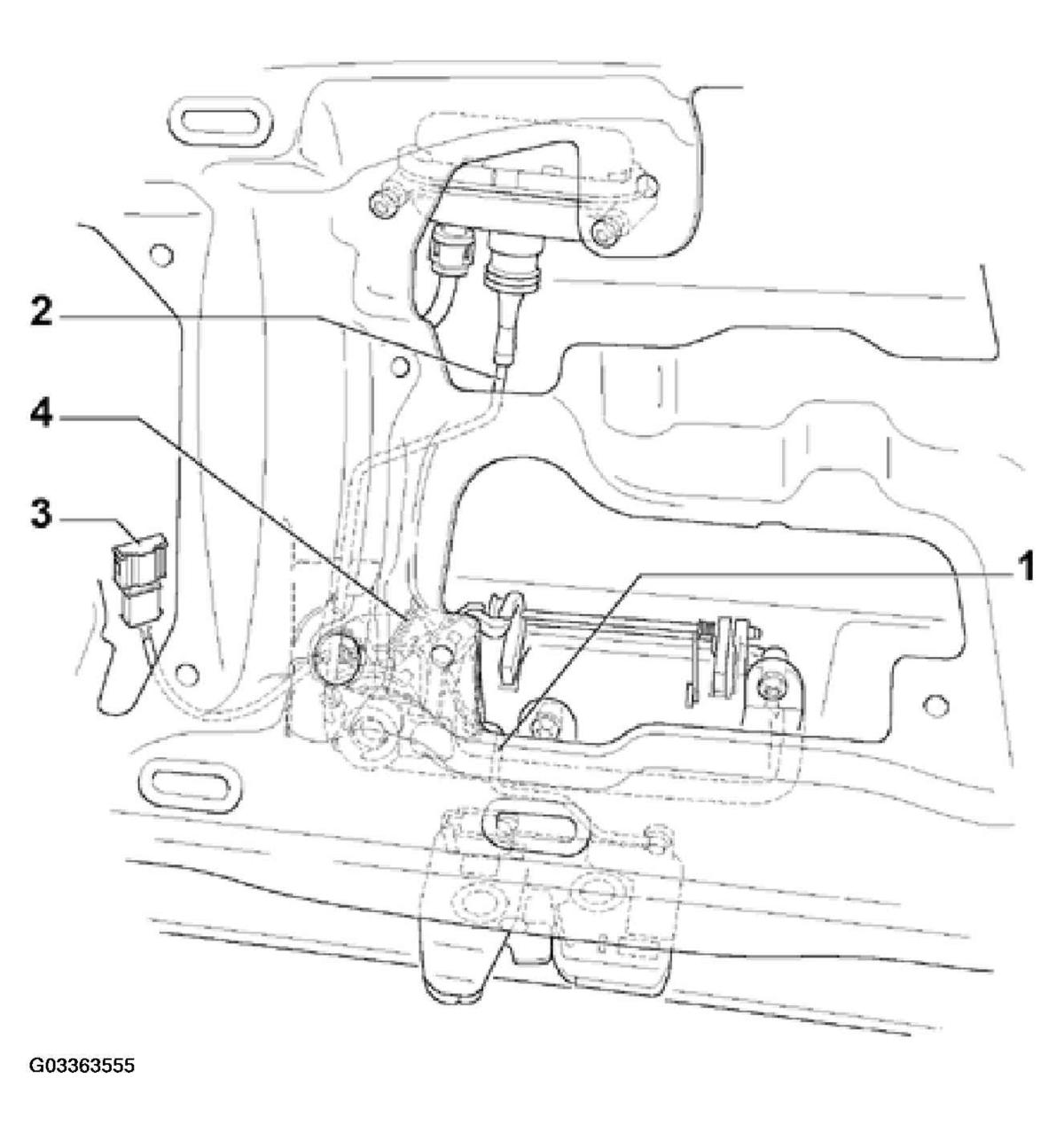

Fig 1: Disconnecting Connector & Unclipping Operating Rods

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Lower spring mount can be damaged during collision repair.
If this is the case the lock cylinder housing must be replaced
Installation must therefore be performed carefully.

Use screwdriver to lift retaining clip -1-.

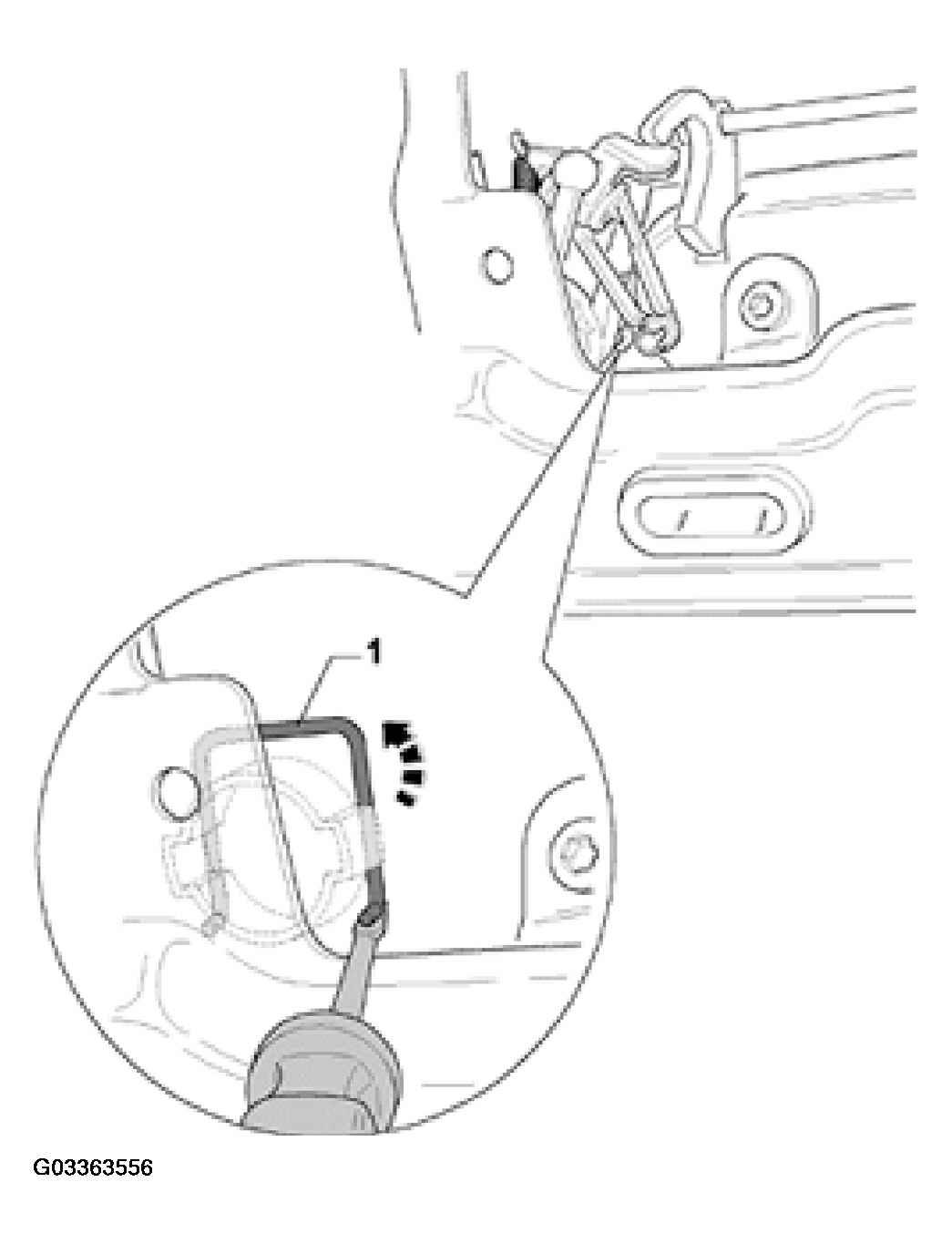

Fig 2: Lifting Retaining Clip Using Screwdriver

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Pry retaining clip -1- over lock cylinder housing mount with screwdriver.

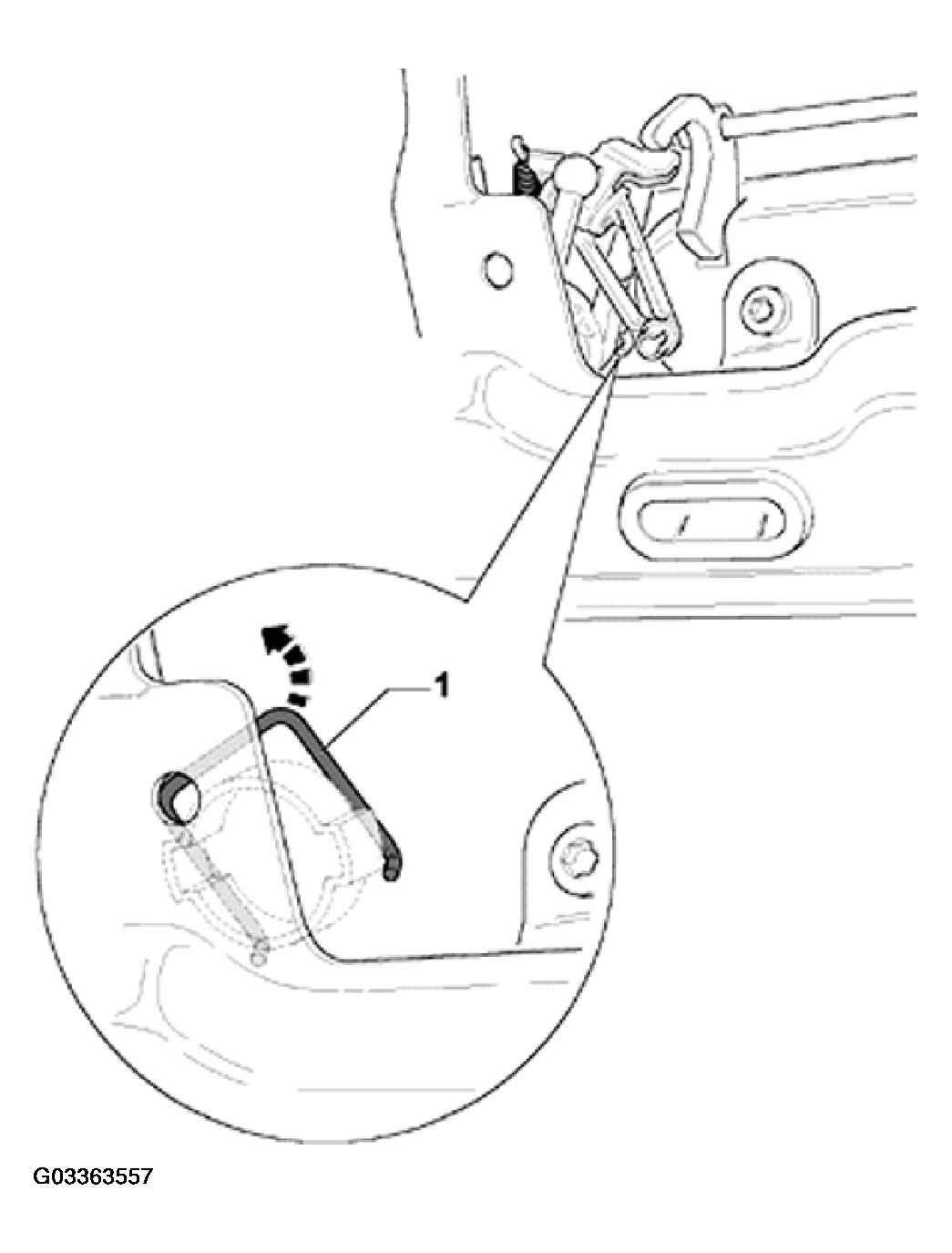

Fig 3: Prying Retaining Clip Over Lock Cylinder Housing Mount

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove cylinder housing.

NOTE: For ease of illustration the lock cylinder housing is omitted from the close up showing the levering-out of the retaining clip.

Take lock cylinder housing out of the handle and the rear lid.
