Lock cylinder housing, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

Insert retaining clip -1- in handle.

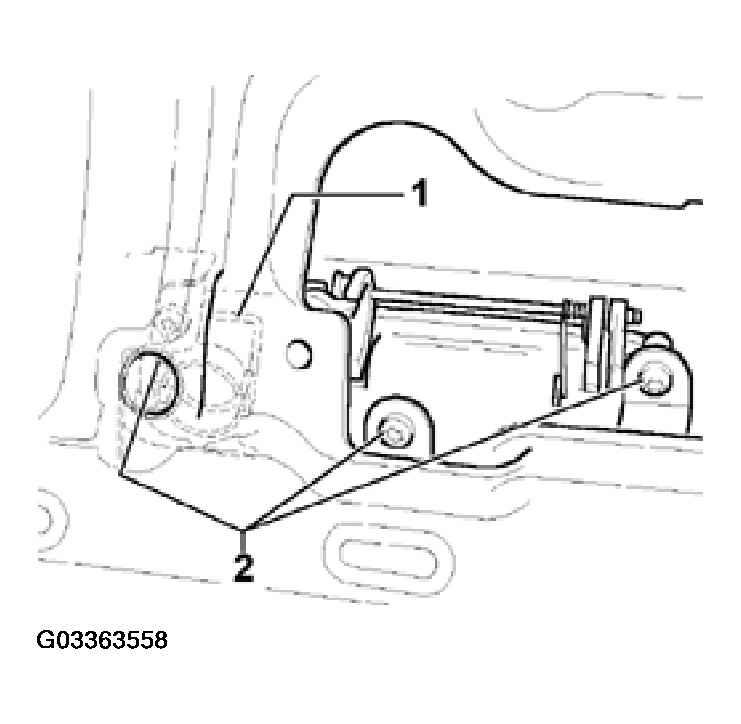

Fig 1: Inserting Retaining Clip

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Insert lock cylinder housing in handle until it stops with an audible click.
Clip operating rods -1- and -2- on.
Reconnect connector -3-.
Continue in reverse order and perform functional test.

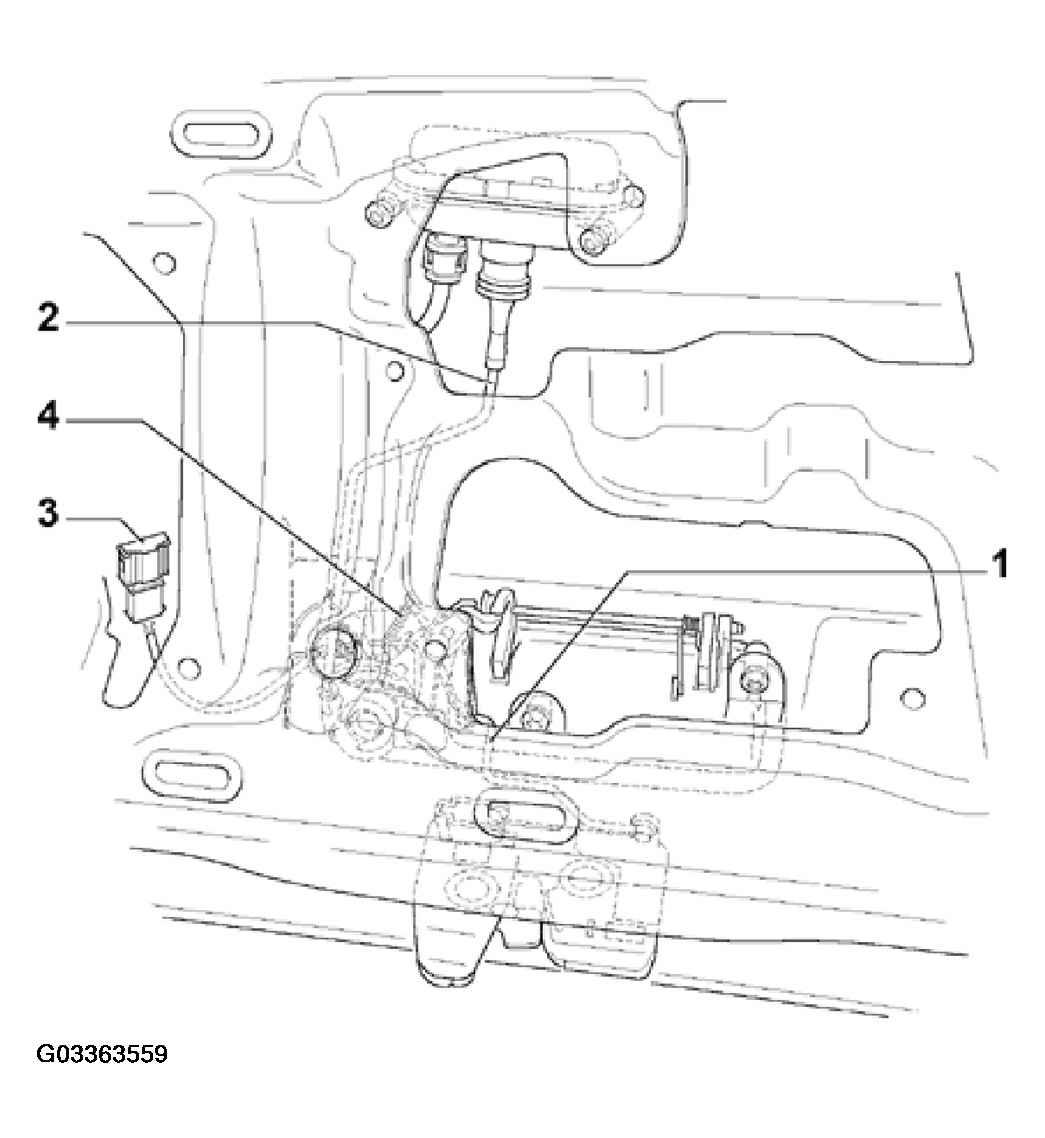

Fig 2: Clipping Operating Rods On & Installing Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.
