Handle and lock cylinder housing, assembly overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

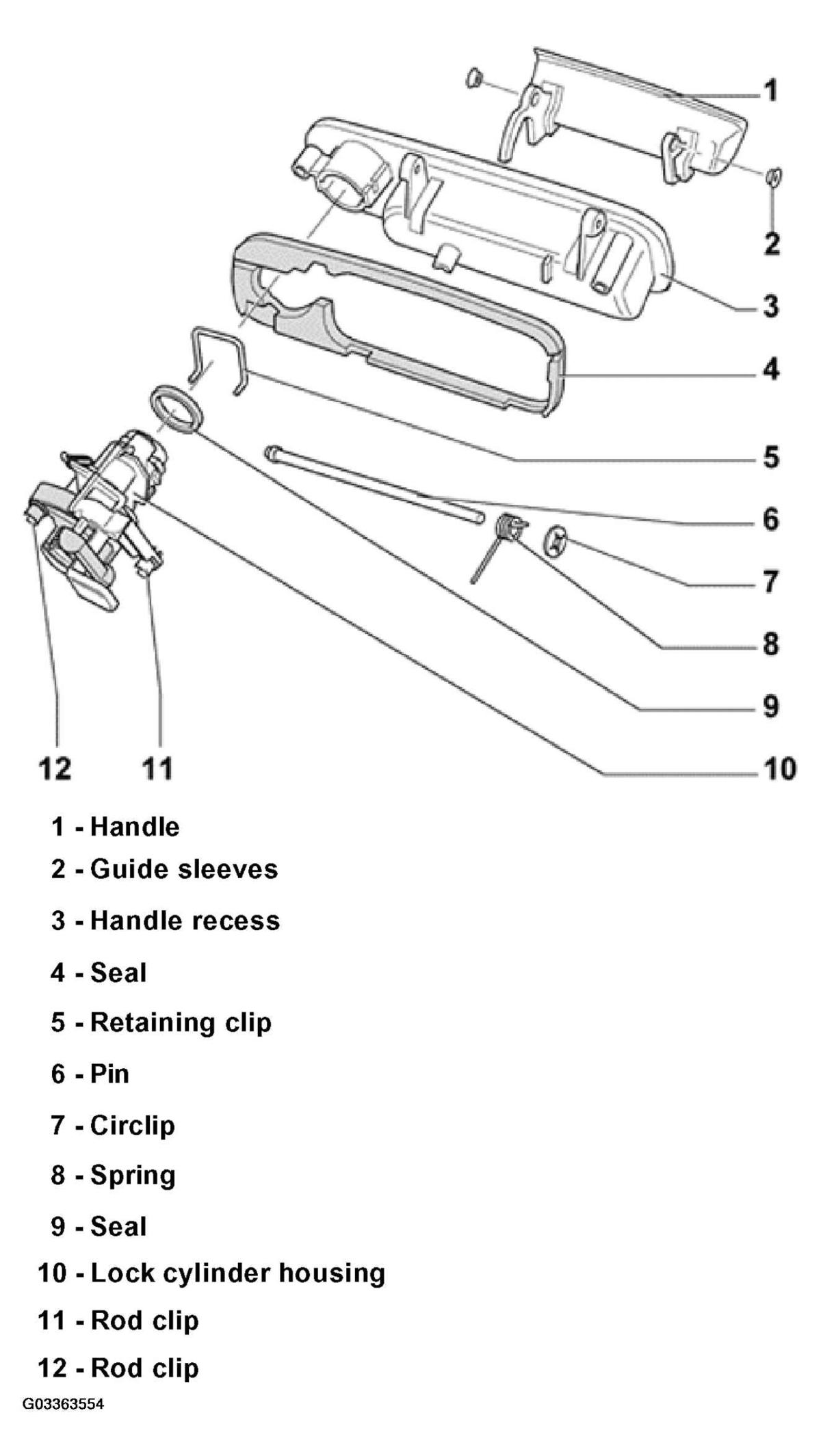

The following list refers to Fig 1
.
- - Handle
- Removing and installing, refer to Handle, removing and installing .
- - Guide sleeves
- - Handle recess
- - Seal
- - Retaining clip
- - Pin
- - Circlip
- - Spring
- - Seal
- - Lock cylinder housing
- Removing and installing, refer to LOCK CYLINDER HOUSING, REMOVING AND INSTALLING .
- - Rod clip
- For tailgate lock
- - Rod clip
- For actuator
