Pulling needle roller bearing from clutch housing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Counter support e.g. Kukko 22/1
  2. - Internal extractor, 14.5 -18.5 mm e.g. US 8028 or Kukko 12/2
    NOTE: Bearing is destroyed during removal and must be replaced.

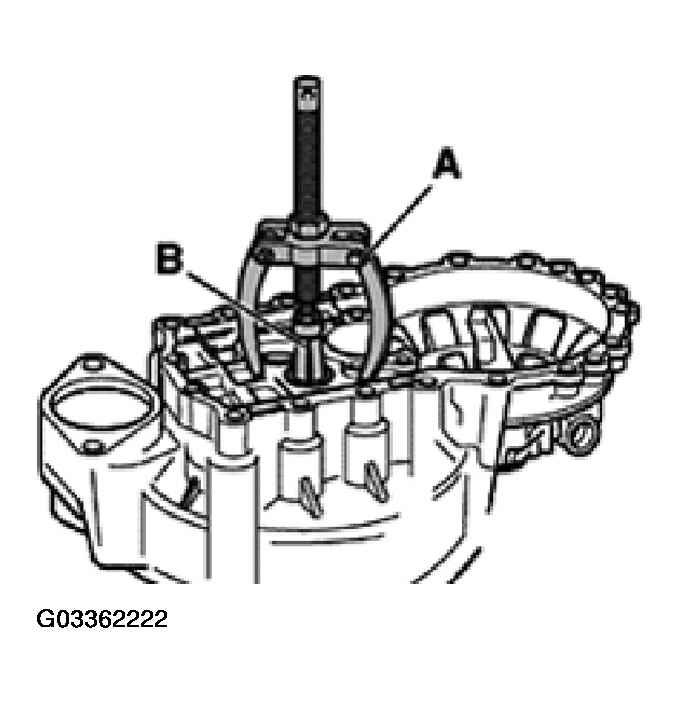

    3. Fig 1: Pulling Needle Roller Bearing From Clutch Housing
    G03362222Courtesy of VOLKSWAGEN OF AMERICA, INC.
