Pressing needle roller bearing into reverse idler shaft support

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

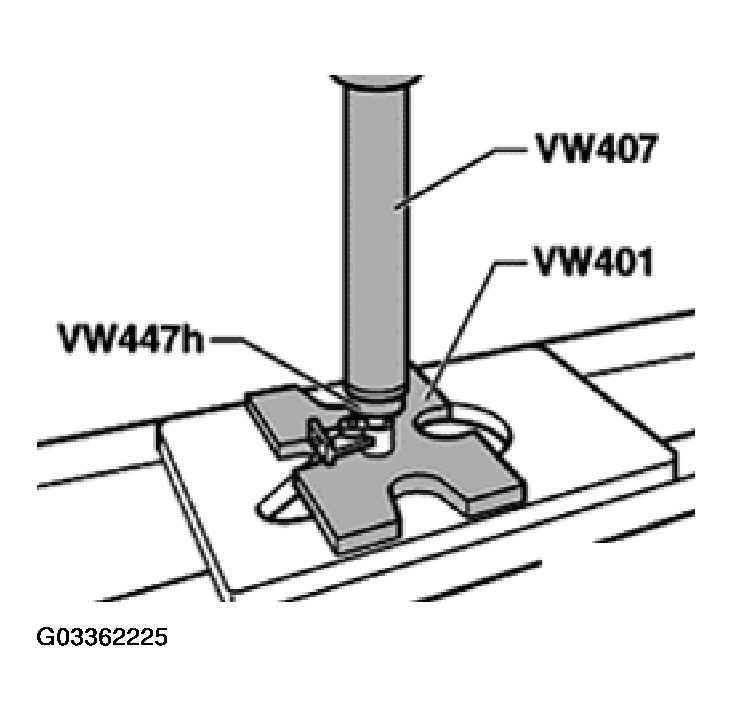

Fig 1: Pressing Needle Roller Bearing Into Reverse Idler Shaft Support
G03362225Courtesy of VOLKSWAGEN OF AMERICA, INC.
