Pulling off small tapered roller bearing outer race

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Internal extractor: 37 -46 mm e.g. US 1099 or Kukko 21/6
  2. - Counter support e.g. US 1032 or Kukko 22/2

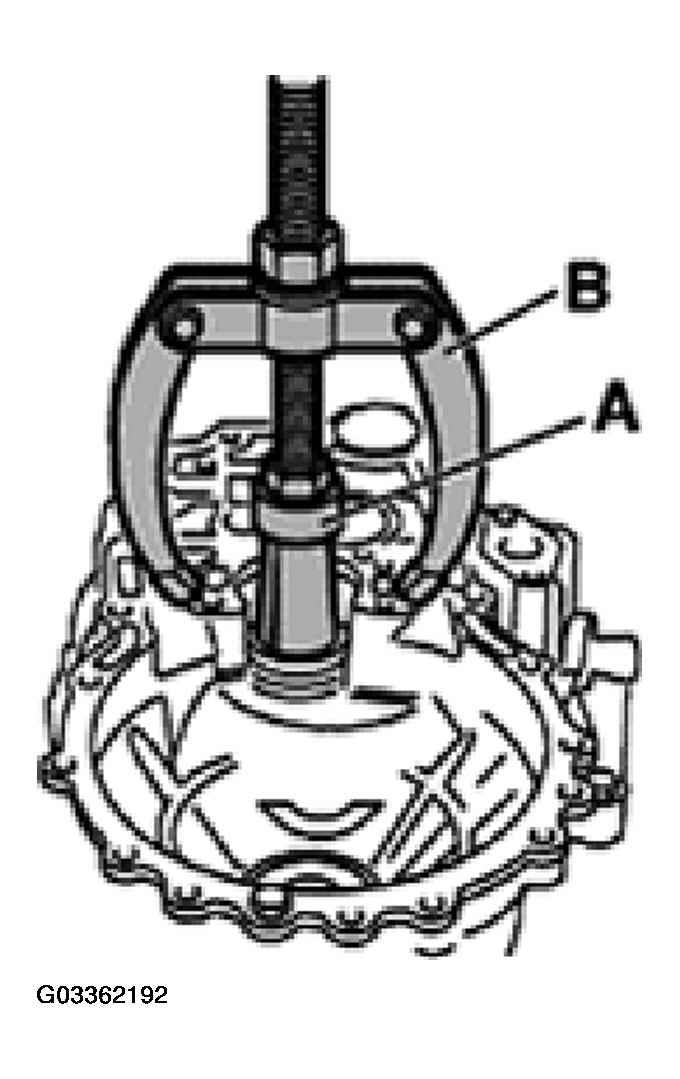

    3. Fig 1: Pulling Off Small Tapered Roller Bearing Outer Race
    G03362192Courtesy of VOLKSWAGEN OF AMERICA, INC.
