Pulling off small tapered roller bearing inner race

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Protective jaws for vise
    • Install puller and tighten into position well behind rollers of bearing.
    • Turn bearing and re -tighten puller.

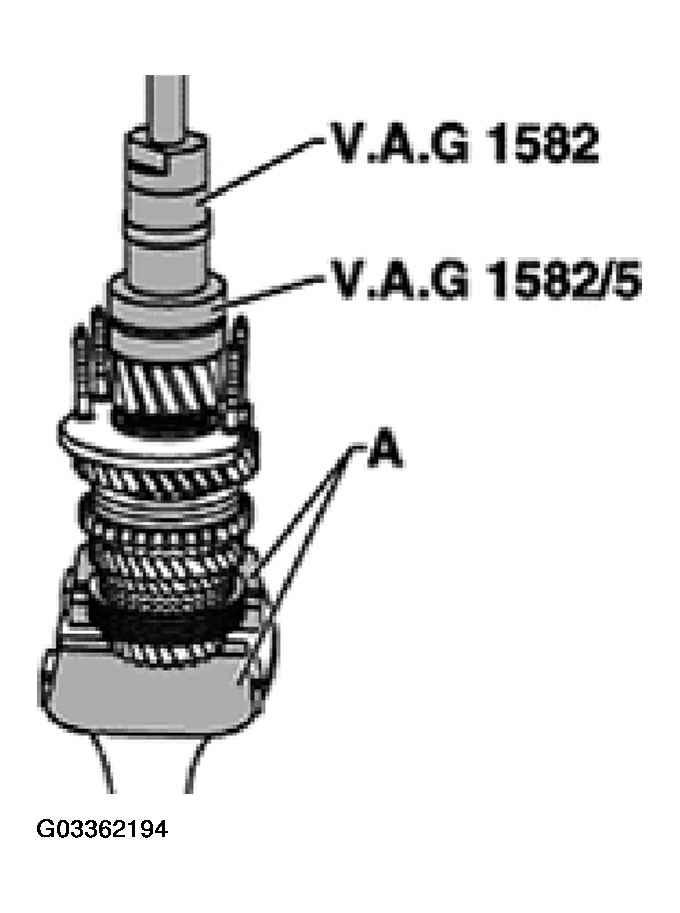

    2. Fig 1: Pulling Off Small Tapered Roller Bearing Inner Race
    G03362194Courtesy of VOLKSWAGEN OF AMERICA, INC.
