Pressing on large tapered roller bearing inner race

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Thrust washer
    • Install thrust washer before pressing on inner race.
      • Shoulder faces inner race

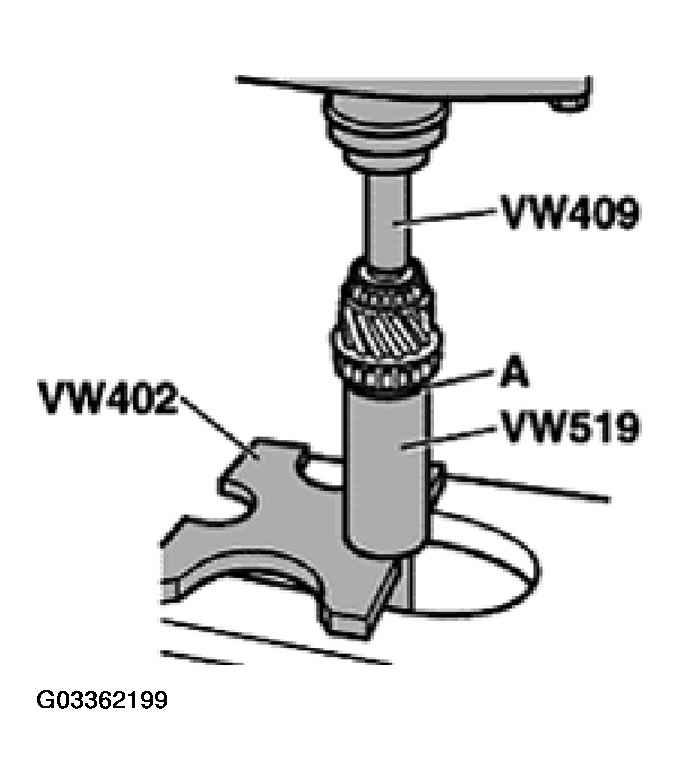

    2. Fig 1: Pressing On Large Tapered Roller Bearing Inner Race
    G03362199Courtesy of VOLKSWAGEN OF AMERICA, INC.
