Pressing on 1st/2nd gear synchro-hub with operating sleeve

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before pressing on, place 1st gear synchro -ring onto 1st gear.

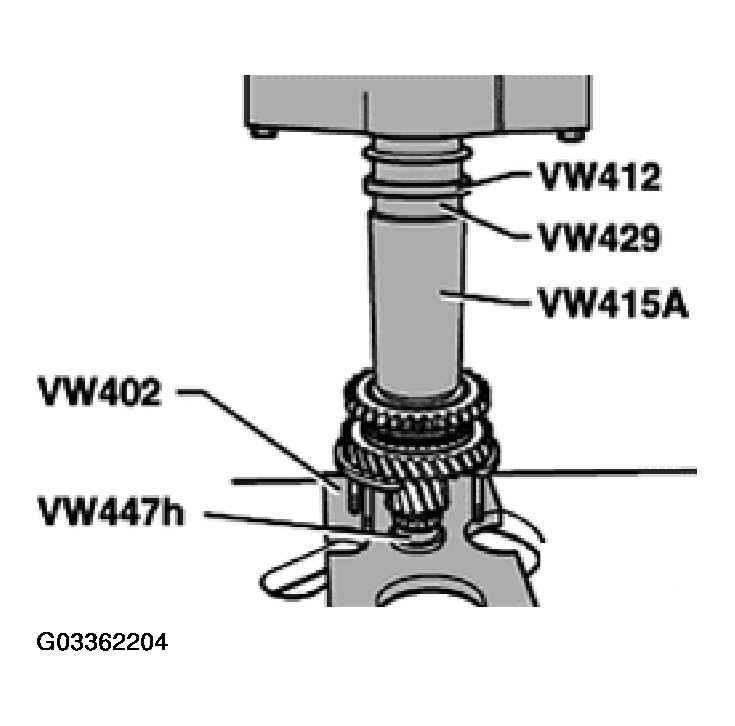

Fig 1: Pressing On 1St/2Nd Gear Synchro-Hub With Operating Sleeve
G03362204Courtesy of VOLKSWAGEN OF AMERICA, INC.
