Disassembling and assembling 3rd gear (3GR) and 4th gear (4GR) operating sleeve and synchro-hub
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

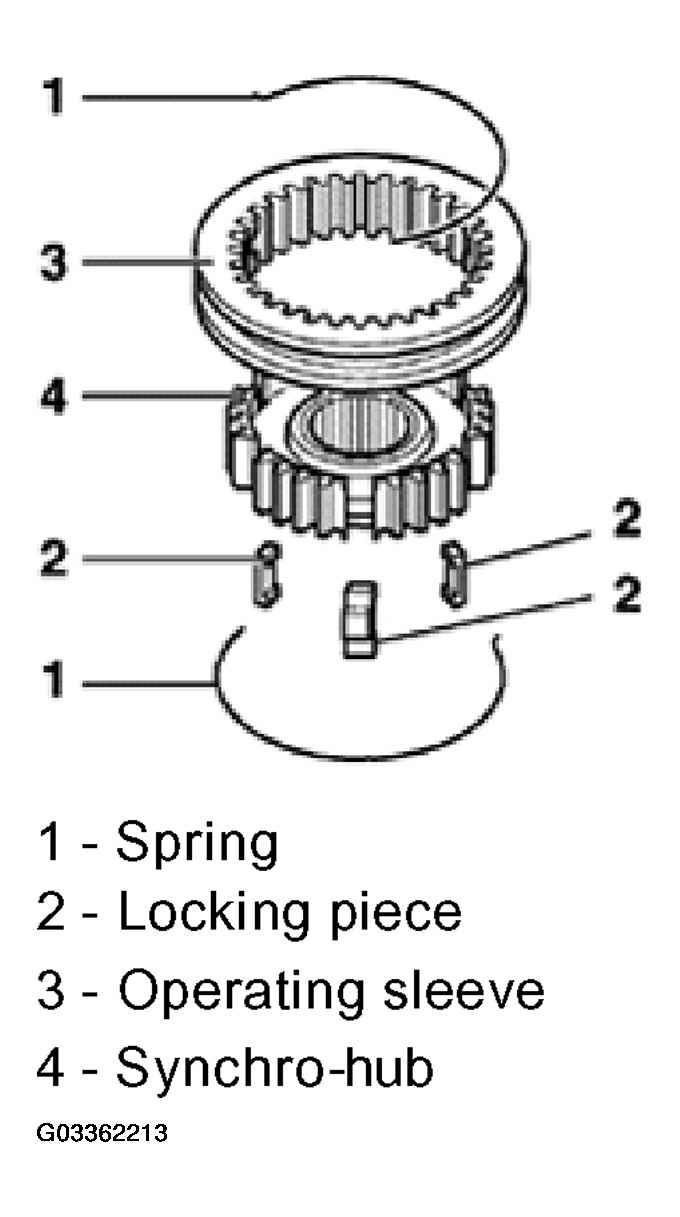

The following list refers to items in Fig 1
.
- - Spring
- - Locking piece
- - Operating sleeve
- - Synchro-hub
- Slide operating sleeve over synchro-hub.
- Recesses for locking pieces, in synchro-hub and in operating sleeve, must be aligned
- Slide operating sleeve over synchro-hub.
