Checking synchronizer inner ring for wear

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Press inner ring onto cone of 2nd gear.
Measure gap -a- with feeler gauge.

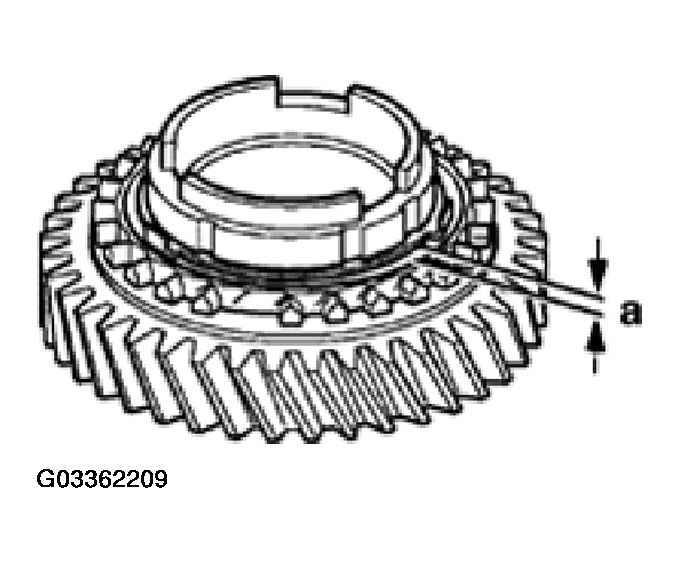

Fig 1: Checking Synchronizer Inner Ring For Wear
Courtesy of VOLKSWAGEN OF AMERICA, INC.

2ND GEAR SYNCHRONIZER WEAR LIMITS

Gear	Gap -a-
Gear	New	Wear limit
2nd gear	0.75-1.25 mm (0.030-0.049 in.)	0.3 mm (0.012 in.)
