Checking 2nd gear synchro-ring for wear

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Press synchro-ring, outer ring and inner ring onto cone of 2nd gear.
Measure gap -a- with feeler gauge.

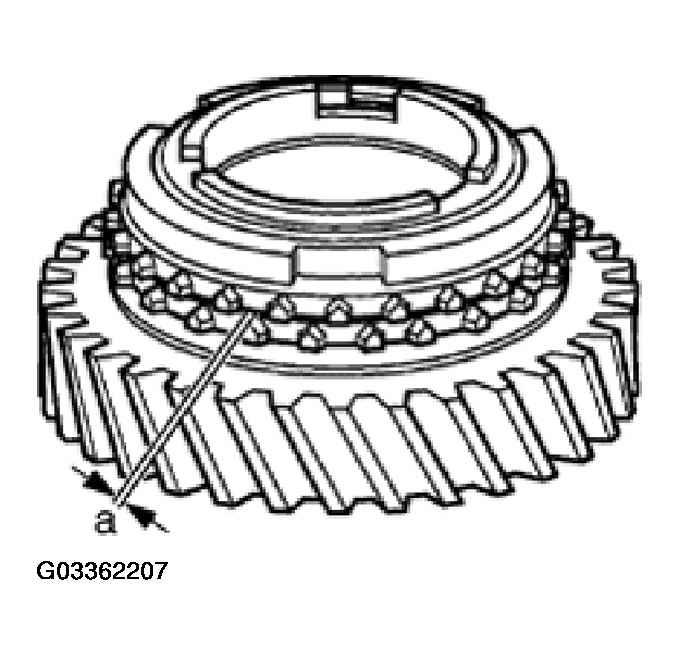

Fig 1: Checking 2nd Gear Synchro -Ring For Wear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

2ND GEAR SYNCHRO-RING WEAR LIMITS

Gear	Gap -a-
Gear	New	Wear limit
2nd gear	1.2-1.8 mm (0.047-0.071 in.)	0.5 mm (0.020 in.)
