Assembling 5th gear operating sleeve and synchro-hub
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

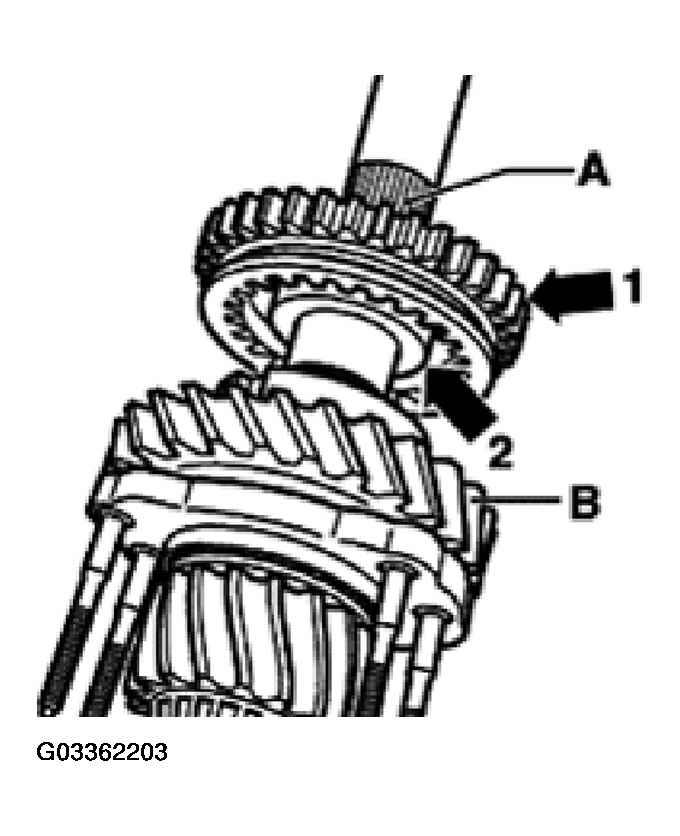

- Press operating sleeve onto synchro-hub.

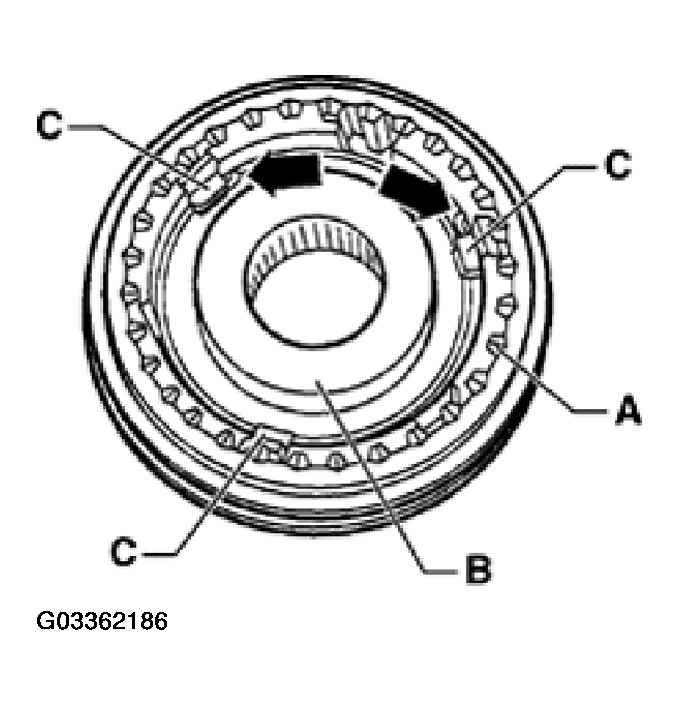

- Pointed teeth -A- and shoulder -B- on synchro-hub face same direction
- Recesses for locking pieces, in synchro-hub and in operating sleeve, must be aligned, see Figure
- Install locking pieces (installation position, see Figure ).
- Install springs under lugs -C-, offset by 120°, under stops -C-.
- Spring must act on all three locking pieces
- Position angled ends directly behind two locking pieces (-arrows-)
