5th gear synchronizer
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

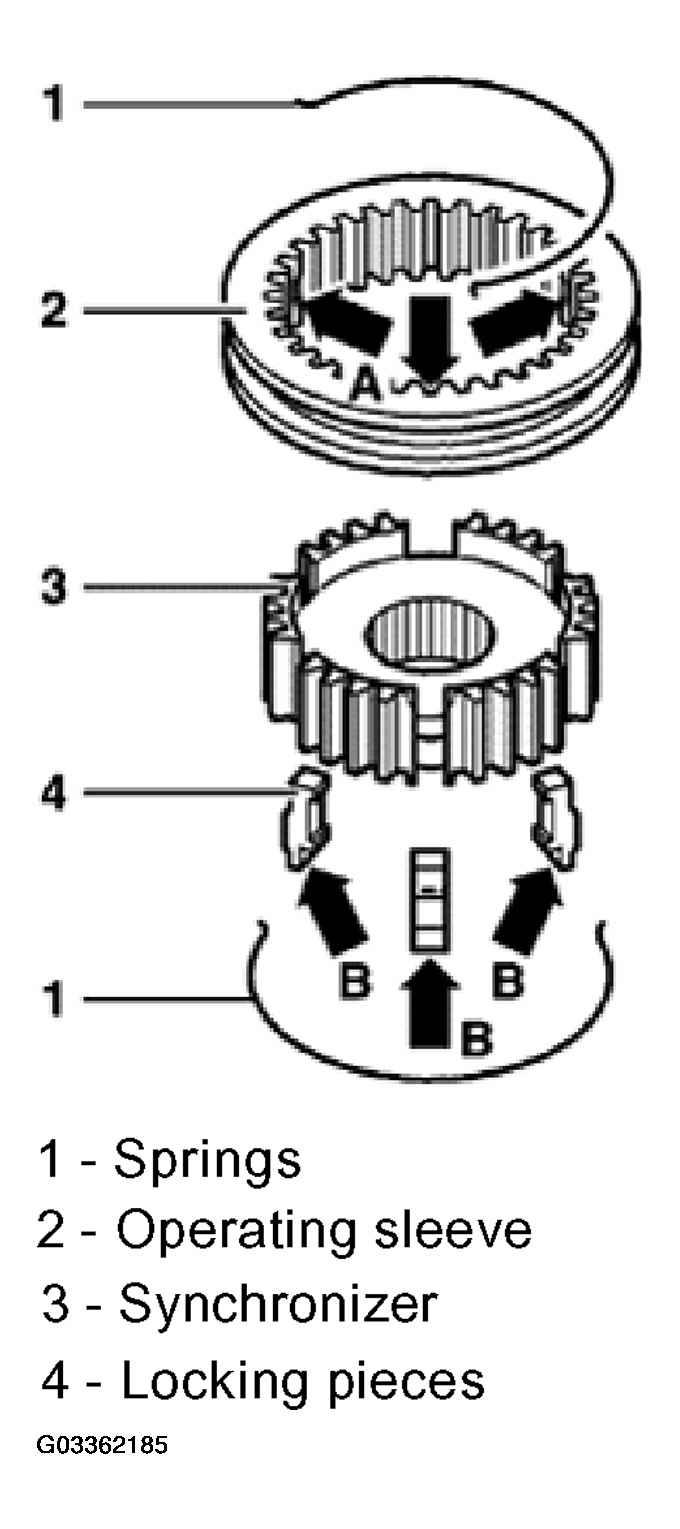

The following list refers to items in Fig 1
.
- - Springs
- - Operating sleeve
- With three recesses (arrows -A-) for additional locking pieces -4-
- - Synchronizer
- - Locking pieces
- Installed position: tapered ends (arrows -B-) face sharp teeth of operating sleeve -2-
