Checking adjustment

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Install measuring fixture and dial indicator.

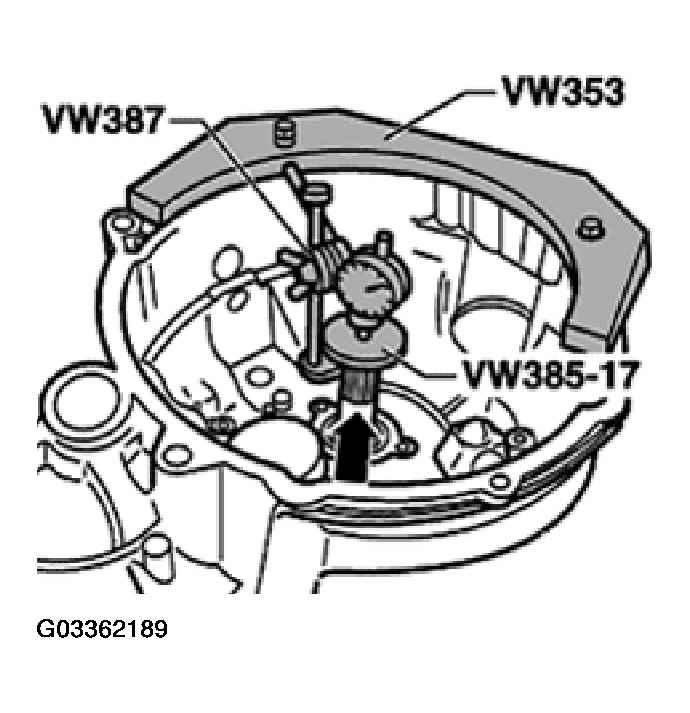

Fig 1: Installing Measuring Fixture And Dial Indicator
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Rotate input shaft to settle tapered roller bearings.
Press input shaft in direction of arrow and read axial play on dial indicator:
- Minimum bearing play = 0.01 mm (0.0004 in.)
- Maximum bearing play = 0.09 mm (0.0035 in.)
  NOTE: If the bearing play cannot be measured, but there is perceptible input shaft play and the input shaft turns freely, the adjustment is acceptable.

Frictional moment (turning torque at bearing preload): max. 20 Ncm (1.8 in lb)

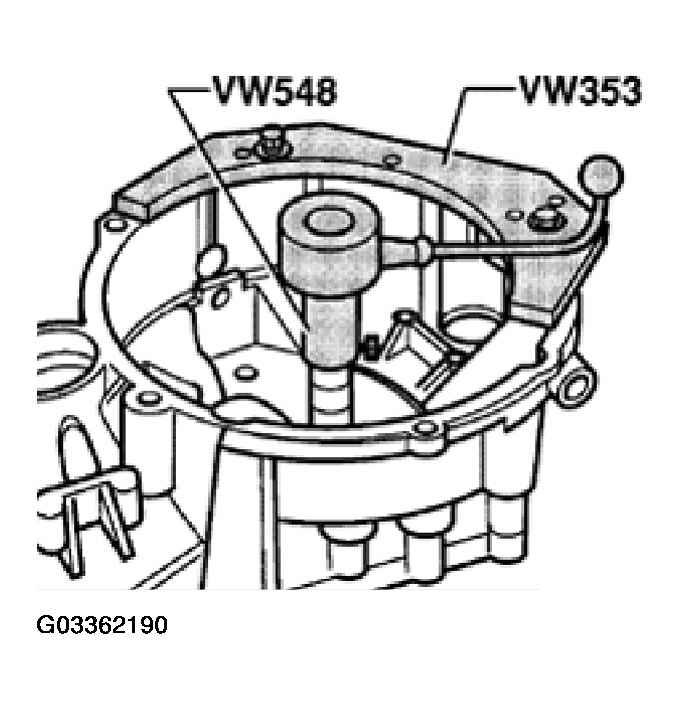

Fig 2: Measuring Frictional Moment (Turning Torque At Bearing Preload)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
