Transmission oil level, checking

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Transmission oil specification, see Code letters, engine/transmission applications, ratios, capacities .

Remove screw for transmission oil inspection (-arrow-).
The oil level is correct if the transmission is filled to the lower edge of the oil filler hole.
Install screw (-arrow-).

During new fill, note the following:

Remove screw (-arrow-).

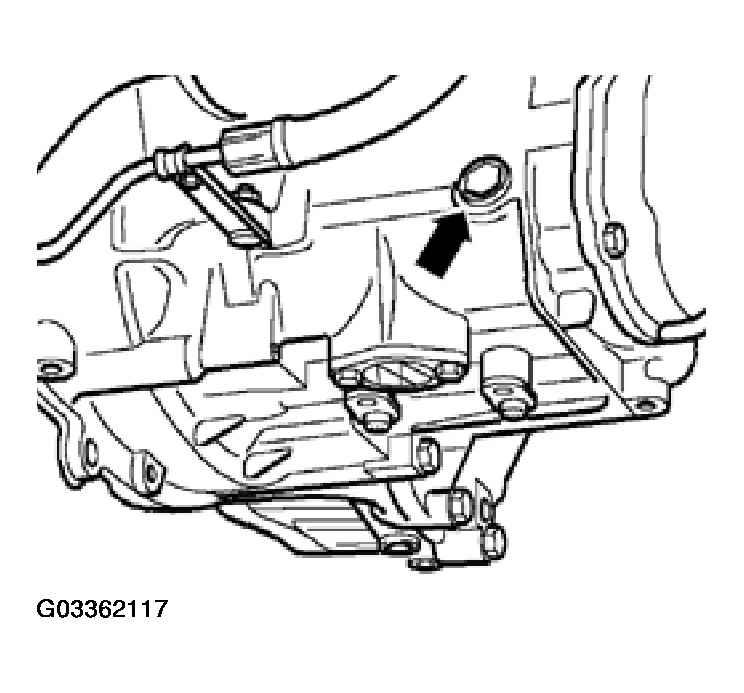

Fig 1: Removing Screw For Transmission Oil Inspection
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Fill with transmission oil to lower edge of filler hole.
Install screw (-arrow-).
Start engine, engage gear and let transmission run approx. 2 minutes.
Remove screw (-arrow-).
Shut engine off and again add transmission oil to lower edge of filler hole.
Install screw (-arrow-).
