Removing starter bushing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
  1. - Internal puller, 14.5-18.5 mm e.g. Kukko 21/2
  2. - Counter support e.g. Kukko 22/1

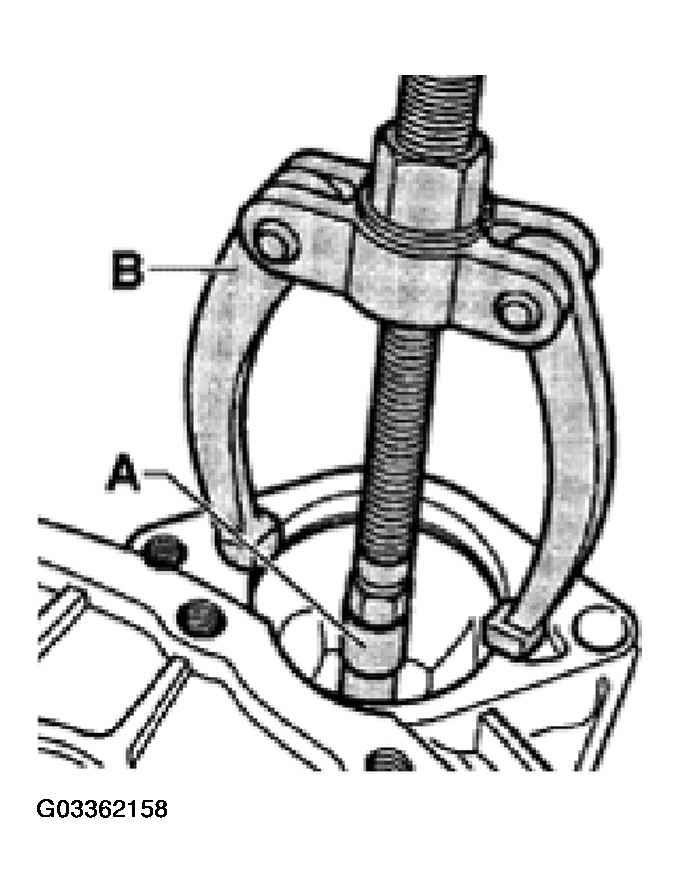

Fig 1: Removing Starter Bushing
G03362158Courtesy of VOLKSWAGEN OF AMERICA, INC.
