Pulling in sleeve
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
- - Threaded rod from seal installer 3066
- - M12 nut with washer

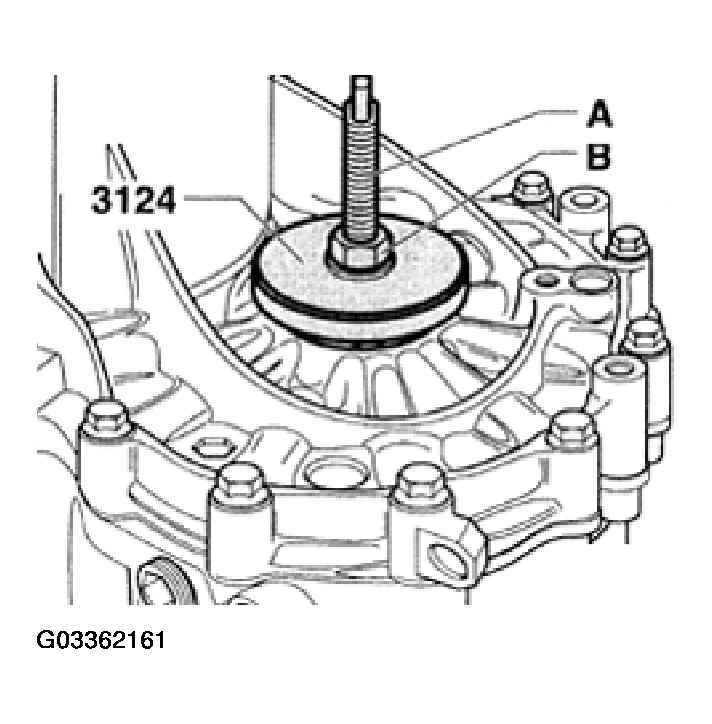

- Screw threaded rod -A- into differential threaded piece
- Pull sleeve in onto stop with thrust piece 3124 by turning nut -B-.NOTE: When transmission is disassembled, press sleeve in with thrust piece 3124 onto stop.
