Transmission mounting bolts

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION MOUNTING BOLT TORQUE SPECIFICATIONS

Item⁽¹⁾

Size

Quantity

Specification

Bolt - M10 x 30

50 N.m (37 ft lb)

Nut - M10 x 45

50 N.m (37 ft lb)

3⁽²⁾

Nut - M10 x 62

54 N.m (33 ft lb)

⁽¹⁾	To identify items, see Fig 1 .

⁽²⁾	Not applicable for vehicles with 6-cylinder engine.

Left transmission bracket to transmission (-arrow-)............25 N.m (18 ft lb)

Right engine bracket to subframe......................................60 N.m (44 ft lb)

Axle shaft to axle flange...................................................45 N.m (33 ft lb)

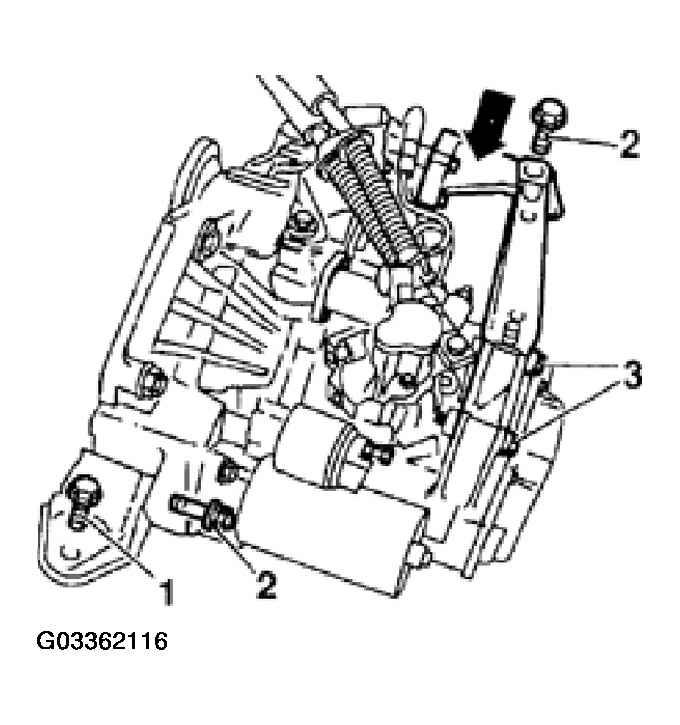

Fig 1: Locating Transmission Bracket, Engine Bracket & Axle Shaft Flange

Courtesy of VOLKSWAGEN OF AMERICA, INC.
