Removing ball sleeve from selector mechanism cover

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before removing ball bearing sleeve, destroy plastic cage and remove balls.
  1. - Internal puller, 18.5-23.5 mm e.g. US 1088 (Kukko 21/3)

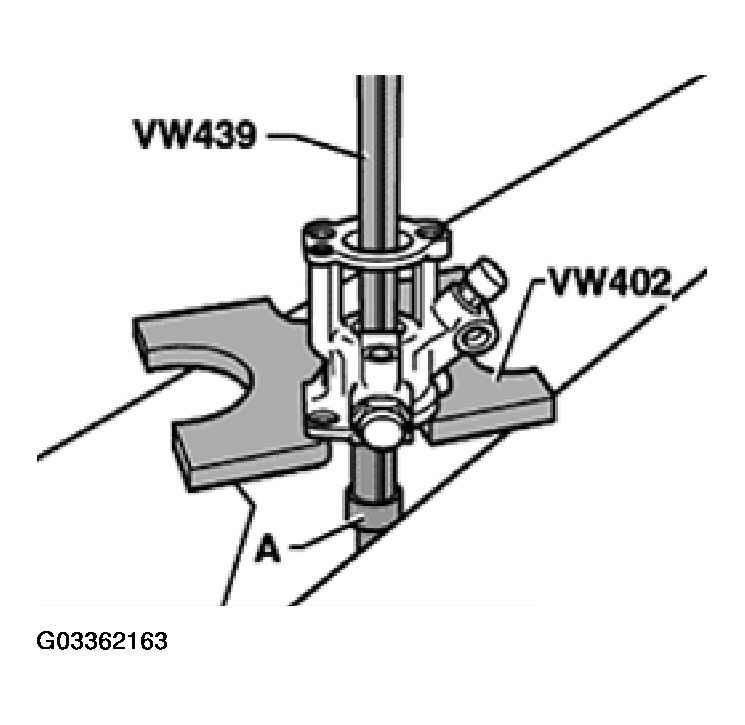

Fig 1: Removing Ball Sleeve From Selector Mechanism Cover
G03362163Courtesy of VOLKSWAGEN OF AMERICA, INC.
