Location on transmission

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

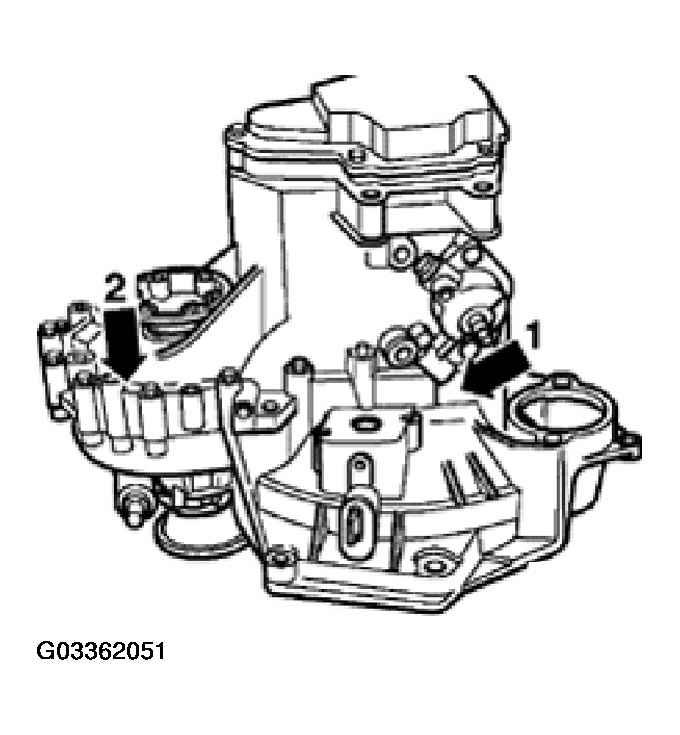

Transmission code letters and date of manufacture (arrow -1-)
Manual transmission type 02A (arrow -2-)

Fig 1: Locating Transmission Code Letters And Date Of Manufacture (1 Of 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

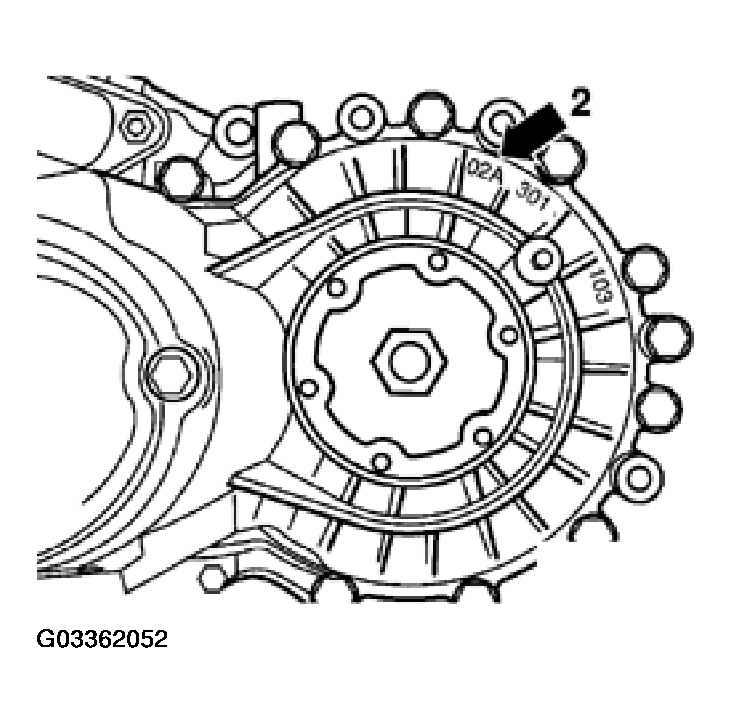

Manual transmission type 02A (arrow -2-)

Fig 2: Locating Transmission Code Letters And Date Of Manufacture (2 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
