Friction moment, checking

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

- Commercial torque gauge, 0 --600 Ncm (0-54 in lb)
- Lubricate tapered roller bearings with transmission oil and check as shown.

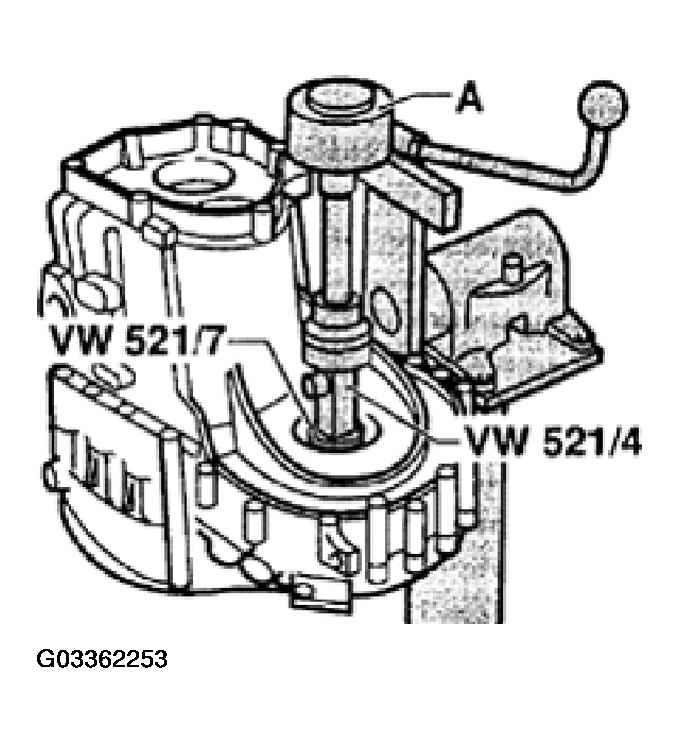

Fig 1: Checking Differential Friction Moment

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specifications:

New bearings: 120-320 Ncm (11-29 in lb)
Used bearings: at least 30 Ncm (3 in lb)
