Transmissions without springs behind axle flanges: Notes

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Replacing seals on transmissions with springs behind axle flanges, see TRANSMISSIONS WITH SPRINGS BEHIND AXLE FLANGES .

Seal dimensions:

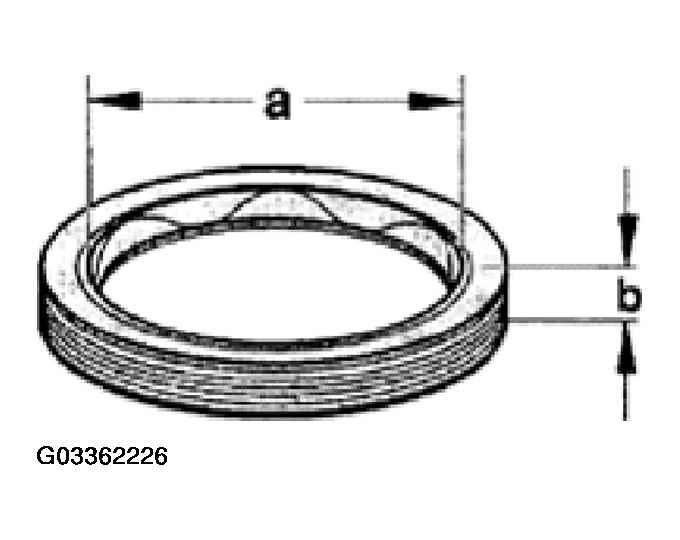

Fig 1: Identifying Axle Flange Oil Seal Dimensions

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Diameter -a- = 40.0 mm (1.575 in.)
Height -b- = 10.0 mm (0.394 in.)

NOTE: Also refer to General Repair Instructions, see General repair instructions
