Transmissions without springs behind axle flanges: Installing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Drive in new axle flange oil seal until flush.
Fill space between sealing lip and dust seal with multi - purpose grease.

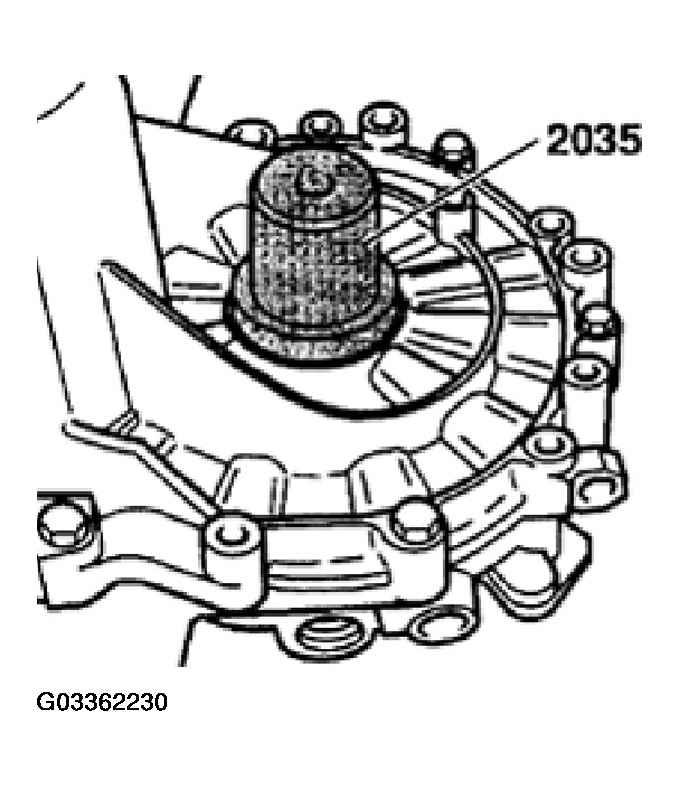

Fig 1: Driving In New Axle Flange Oil Seal Until Flush

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Drive in axle flange using 30-505 mandrel.

Check transmission oil, if necessary top off to lower edge of filler opening, see General repair instructions

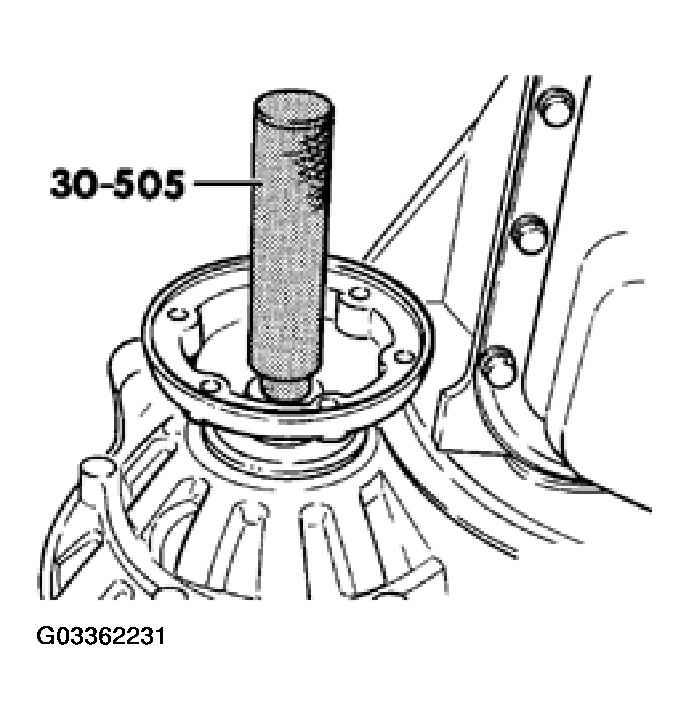

Fig 2: Drive In Axle Flange Using 30-505 Mandrel

Courtesy of VOLKSWAGEN OF AMERICA, INC.
