Transmissions with springs behind axle flanges: Removing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Turn steering completely to right (full-lock).
Disconnect axle shaft from axle flange.
Press axle shaft upward as far as possible and support with block of wood, or equivalent, under shaft.
CAUTION: Avoid damaging surface finish of axle shaft.

NOTE: When replacing left-side oil seal, the following additional steps are required:

Remove wheel.
Remove transmission support -A- (where applicable).
NOTE: To do so, disconnect coolant overflow reservoir and lay it aside, see ENGINE - COOLING SYSTEM - 2.8 L VR6 2V - AAA .

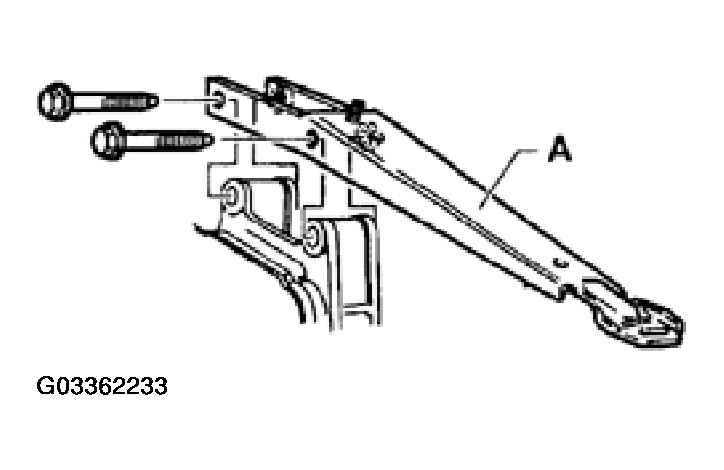

Fig 1: Removing Transmission Support -A-

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove axle flange bolt.
Place oil pan underneath and remove out axle flange.
Remove seal.

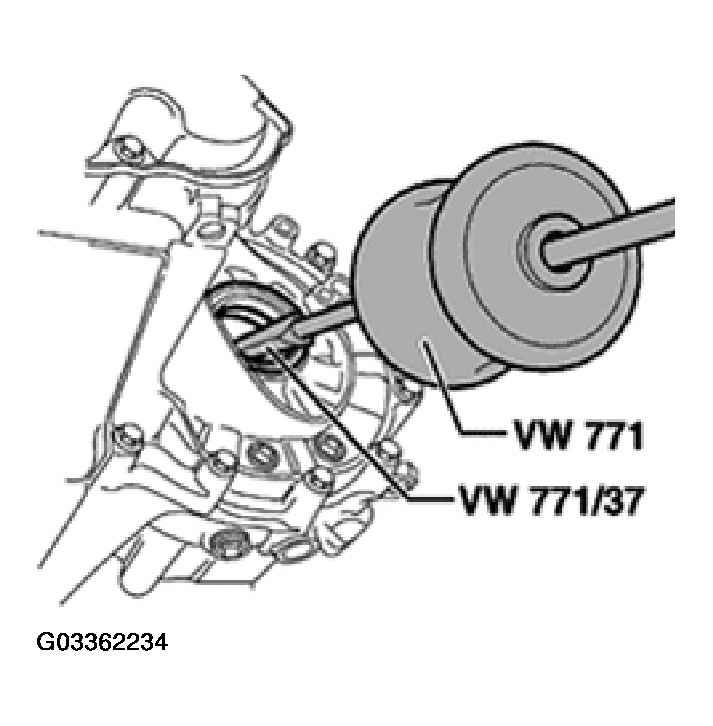

Fig 2: Removing Axle Flange Seal (Transmissions With Springs Behind Axle Flanges)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
