Transmissions with springs behind axle flanges: Installing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. In the process, note the following:

Drive new axle flange seal in to stop.

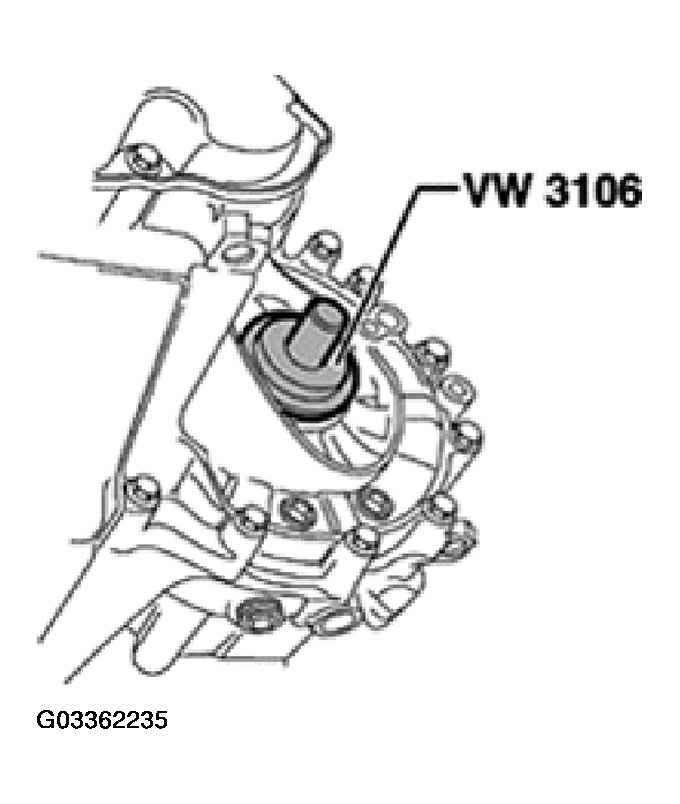

Fig 1: Driving New Axle Flange Seal In To Stop (Transmissions With Springs Behind Axle Flanges)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Fill space between sealing lip and dust seal with multi- purpose grease.
Install axle flange.
Check transmission oil, if necessary top off to lower edge of filler opening: See General repair instructions
