Over-center spring, removing and installing: Removing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower left trim panel, driver's side. See INTERIOR TRIM PANELS, SERVICING .
Remove cover plate below pedal cluster.
- Foam rubber liner remains in vehicle
Unhook relay plate from bracket.
Remove protective plate between relay plate and pedal cluster, as follows:
Unclip wiring harness from retainers -1-.
Press clips -arrow 2- toward pedal cluster.
Push protective plate toward instrument panel -arrow 3- until plate can be removed from its mounting.
Remove protective plate in downward direction.
CAUTION: DO NOT damage wiring harness.

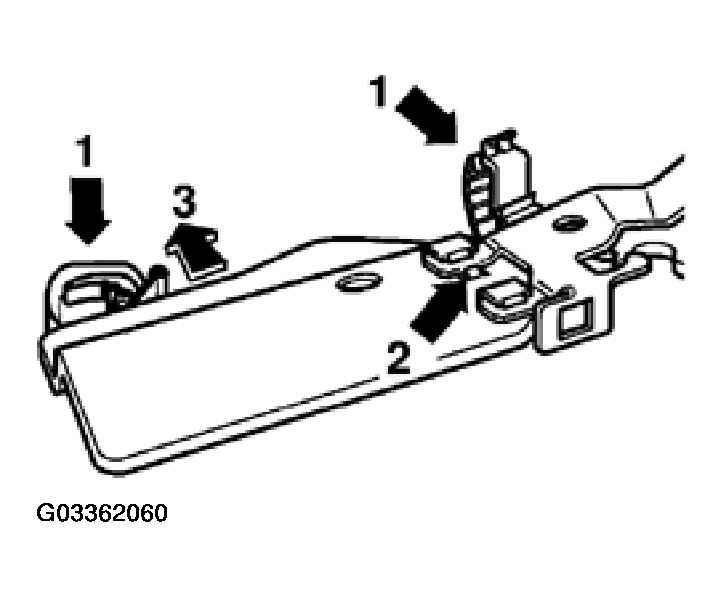

Fig 1: Removing Protective Plate Between Relay Plate And Pedal Cluster

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Guide screwdriver between steering column and clutch pedal and place against over -center spring.

Depress clutch pedal and pry return spring off pedal in direction indicated by arrow.

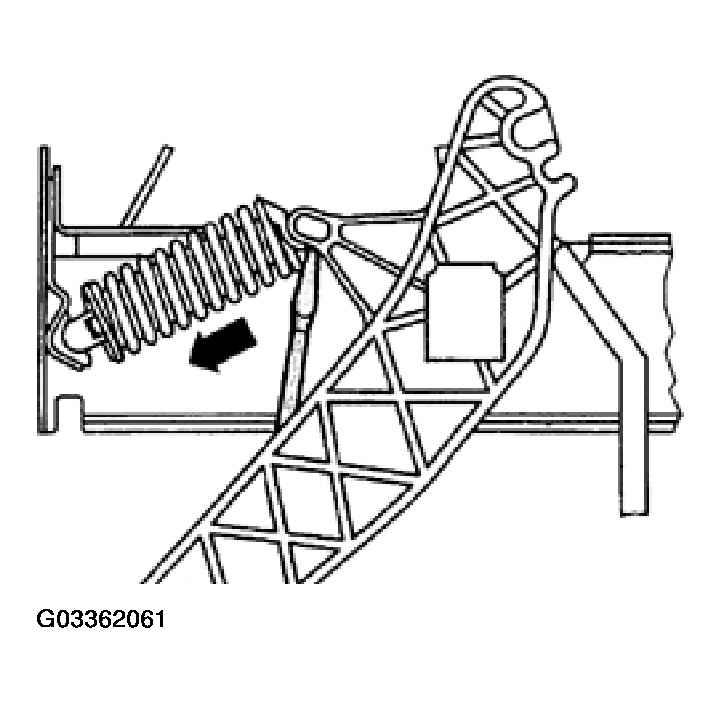

Fig 2: Depressing Clutch Pedal And Pry Return Spring Off Pedal In Direction Indicated

Courtesy of VOLKSWAGEN OF AMERICA, INC.
