Master cylinder, removing and installing: Removing
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
- Remove coolant expansion tank and lay to one side.CAUTION: Do not open the cooling system.
- Disconnect brake line from master cylinder and seal.
- Disconnect supply hose from brake fluid reservoir and seal.
- Unhook relay plate from left retainer.
- Remove protective plate between relay plate and pedal cluster, see OVER-CENTER SPRING, REMOVING AND INSTALLING .
Disconnect master cylinder push rod from pedal cluster as follows:

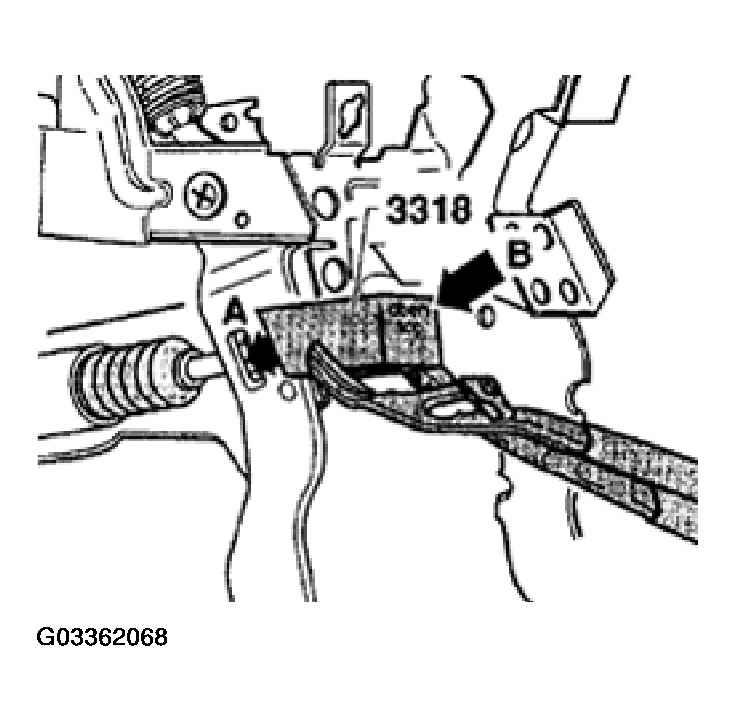

- Insert release tool 3309 into cut-outs on clutch pedal -arrows A-.
- Inscription "top/oben" faces toward instrument panel
- Place pliers 10-208A in recesses of release tool -arrows C- and press jaws together. See Fig 2 .
NOTE:
The clutch pedal will be pushed onto the stop in the passenger compartment after completely removing the over -center spring. If necessary it can be pulled back into the passenger compartment.

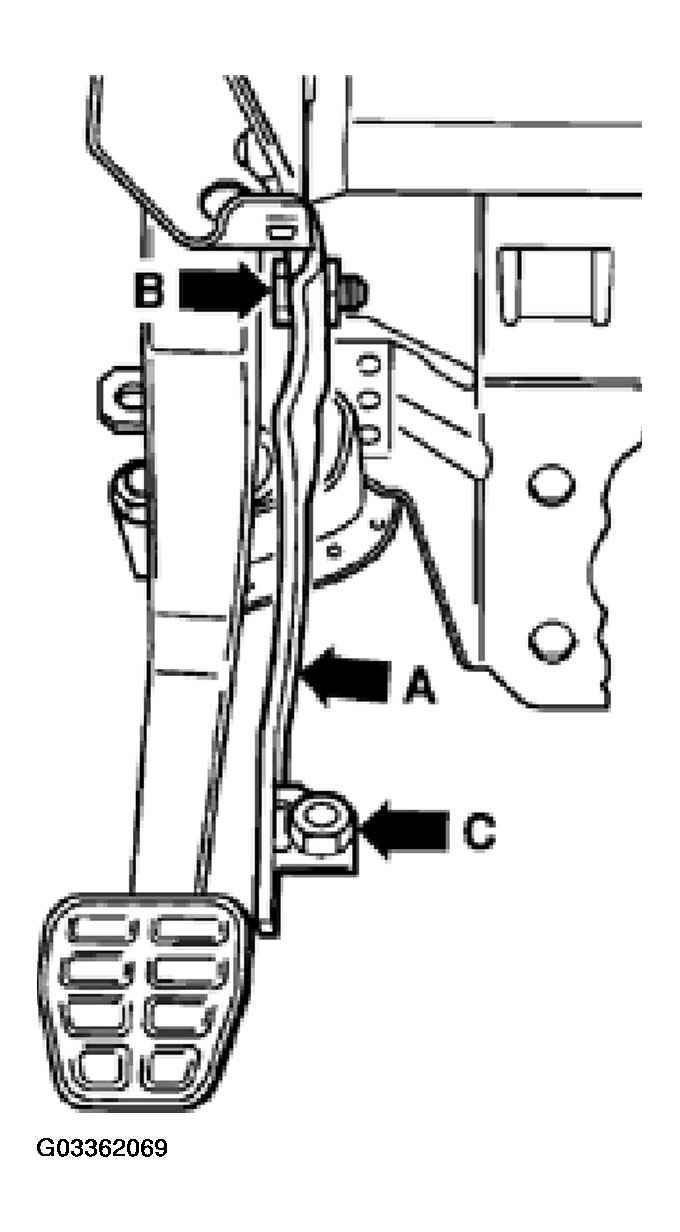

Remove mounting bracket support -arrow A- by removing bolt -arrow B- and nut -arrow -C-.

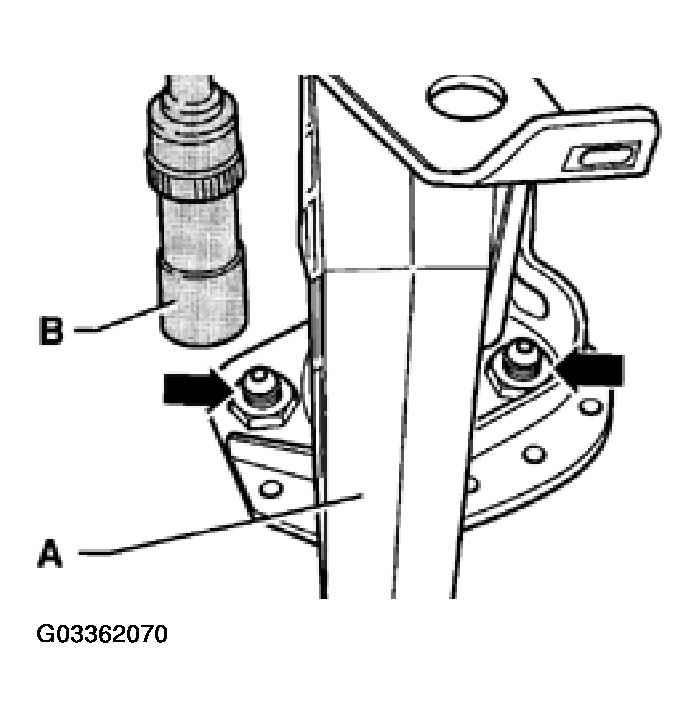

Remove master cylinder from passenger compartment by removing mounting nuts -arrows- on each side of clutch pedal -A-. See Fig 3 .
B - 13 mm, 3/8 in. -drive deep-well socket
