Clutch release mechanism, servicing: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

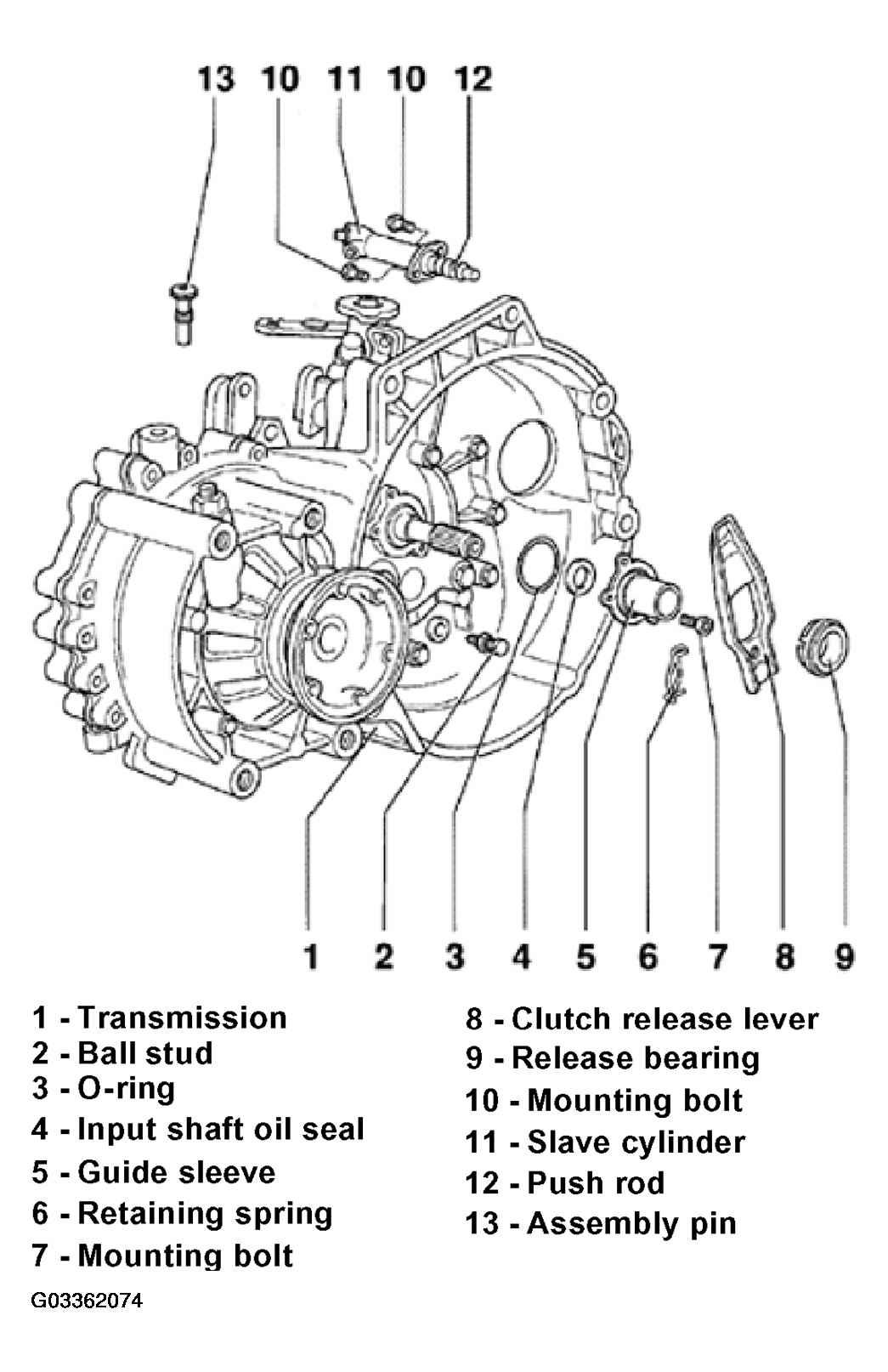

The following list pertains to Fig 1 .
- Transmission
- Ball stud
- Tightening torque: 25 N.m (18 ft lb)
- Lubricate with MoS2 grease
- O-ring
- Always replace
- Input shaft oil seal
- Removing, see Removing oil seal from guide sleeve
- Installing, see Installing oil seal into guide sleeve
- Guide sleeve
- Lubricate with MoS2 grease in area of release bearing
- Retaining spring
- Attach to clutch release lever
- Mounting bolt
- Tightening torque: 20 N.m (15 ft lb)
- Clutch release lever
- Release bearing
- DO NOT wash bearing (wipe off instead)
- Replace noisy bearings
- Lubricate surfaces that contact clutch release lever with MoS2 grease
- Mounting bolt
- Tightening torque: 20 N.m (15 ft lb)
- Slave cylinder
- Removing and installing, see MASTER CYLINDER, REMOVING AND INSTALLING
- Push rod
- Lubricate end of push rod with MoS2 grease
- Assembly pin
- Secures clutch release lever while installing transmission
- Remove after transmission has been installed
NOTE: A bolt, M8x35, can be used as a substitute if assembly pin -13- is not available.
