Clutch actuating mechanism

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

II - Assembly overview-pedal cluster, see ASSEMBLY OVERVIEW - PEDAL CLUSTER

II - Assembly overview-clutch hydraulic system, see ASSEMBLY OVER VIEW CLUTCH HYDRAULIC SYSTEM

WARNING: Always replace circlips and selflocking nuts and bolts.

CAUTION: On vehicles with an anti-theft radio, make sure you know the radio activation code before disconnecting the battery.

NOTE:

Disconnect the battery Ground (GND) strap.
Lubricate all bearing and contact surfaces with MoS2 lubricant.
Follow General repair instructions, see appropriate Engine Mechanical article.

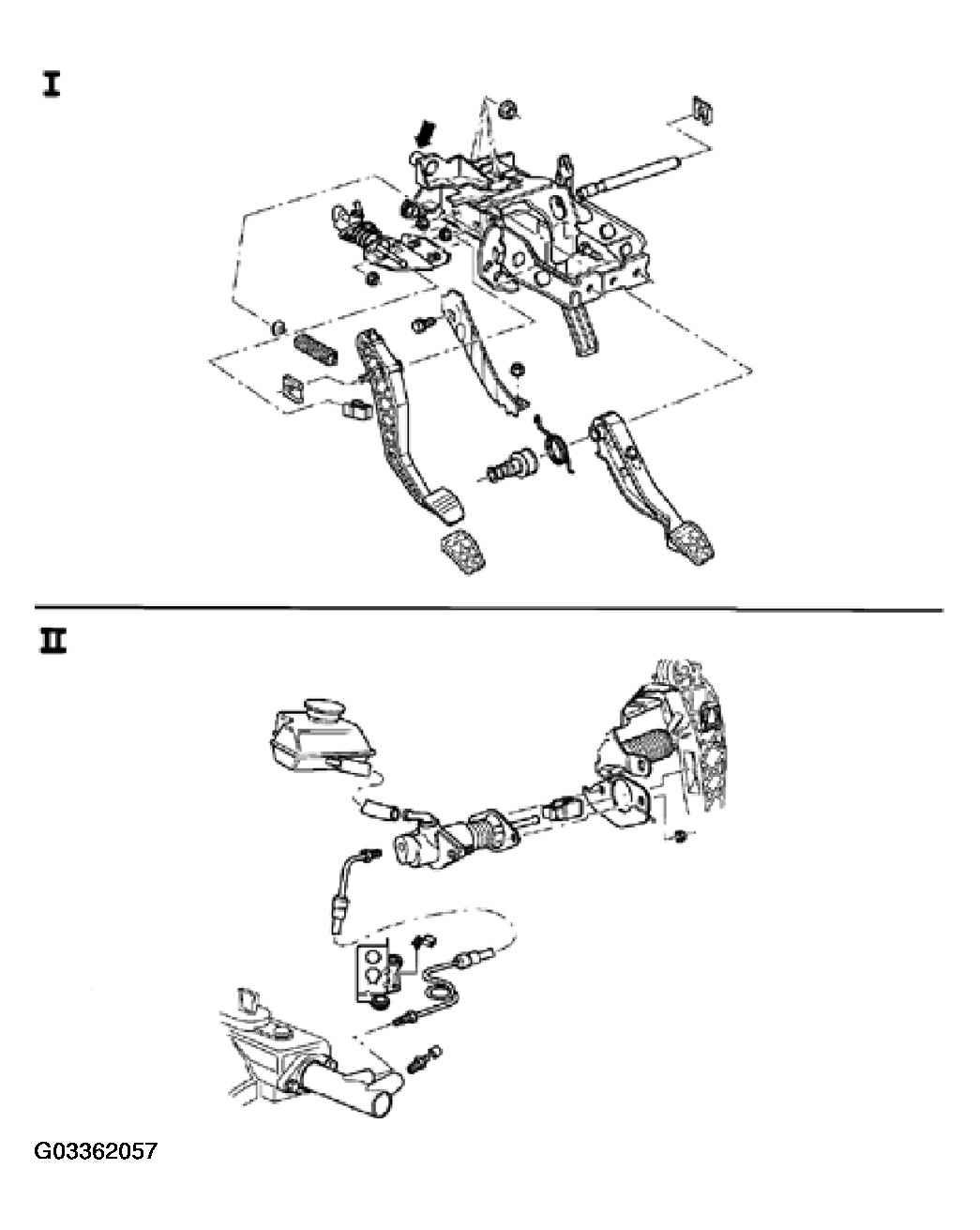

Fig 1: Identifying Components Of Clutch Actuating Mechanism

Courtesy of VOLKSWAGEN OF AMERICA, INC.
