Lock carrier, removing and installing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect plugs and detach hood bowden cable.
- Loosen air ducts in near wheel house liner.

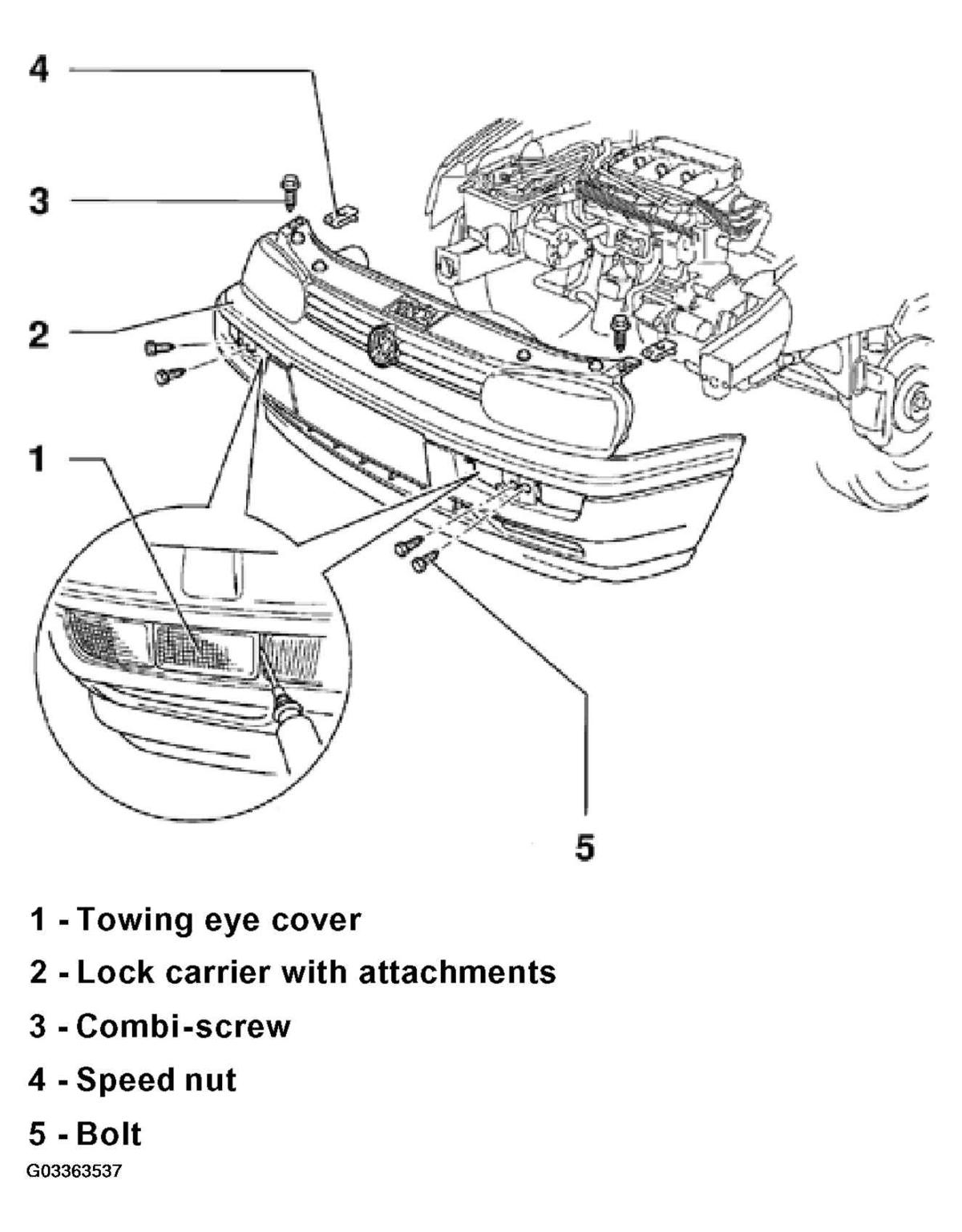

The following list pertains to Fig 1 .
- - Towing eye cover
- Swing cover/towing eye toward front using suitable tool and pull out of holder/turn signal.
- - Lock carrier with attachments
- Must be installed free of stress.
- - Combi-screw
- 5 N.m (45 in. lb)
- - Speed nut
- - Bolt
- 23 N.m (17 ft lb)
