Front seat, removing and installing (vehicles with side airbags): Notes

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before disconnecting ignition and Ground (GND) wire, the technician must be electrostatically discharged (touch closing wedge for door or chassis briefly). Connector -2- (at VAS5061 airbag adapter) is not required.

Disconnect ignition and Ground (GND) wire from side airbag.
Connect connector -1- (at VAS5061 airbag adapter) in connector housing - 4-.
Connect connector -3- (at VAS5061 airbag adapter) in connector housing - 5-.
Disconnect harness connectors for seat heating and seat adjustment if equipped.

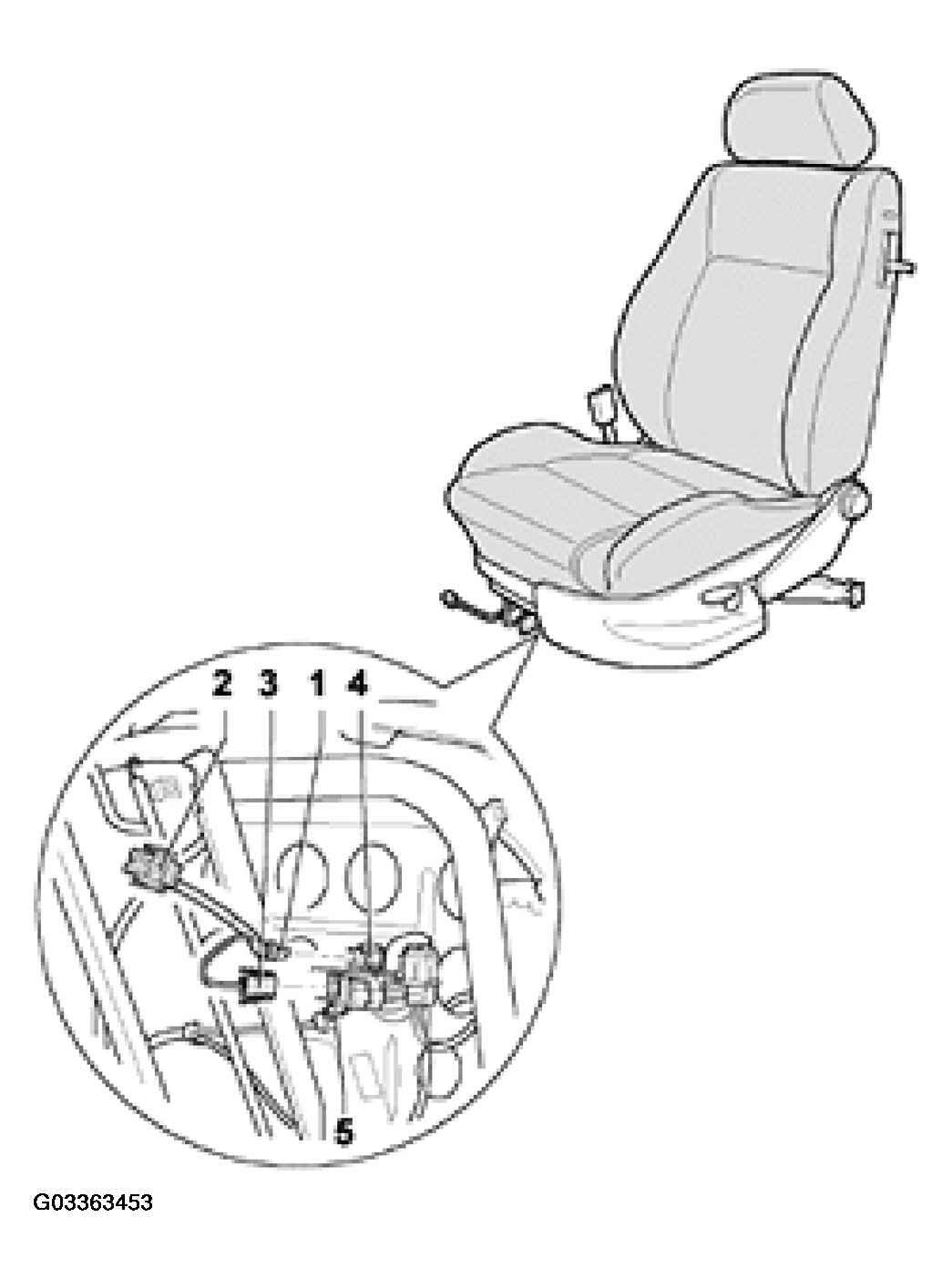

Fig 1: Identifying Front Seat Harness Connectors (Vehicles With Side Airbags)
