Front seat backrest, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to Fig 1 .

Remove front seat. See SEATS, FRONT .
Press off control knob -4-.
Drive out expander pins -5- (left and right) toward inside.
Front expander pin will be pressed against seat frame.
Press expander pin downward from above using screwdriver.
Remove cover -6- from backrest frame.
Remove Phillips-head screw -11-.
Pull off retainers -7- (left and right).
Pull backrest frame off mounting pin -13-.

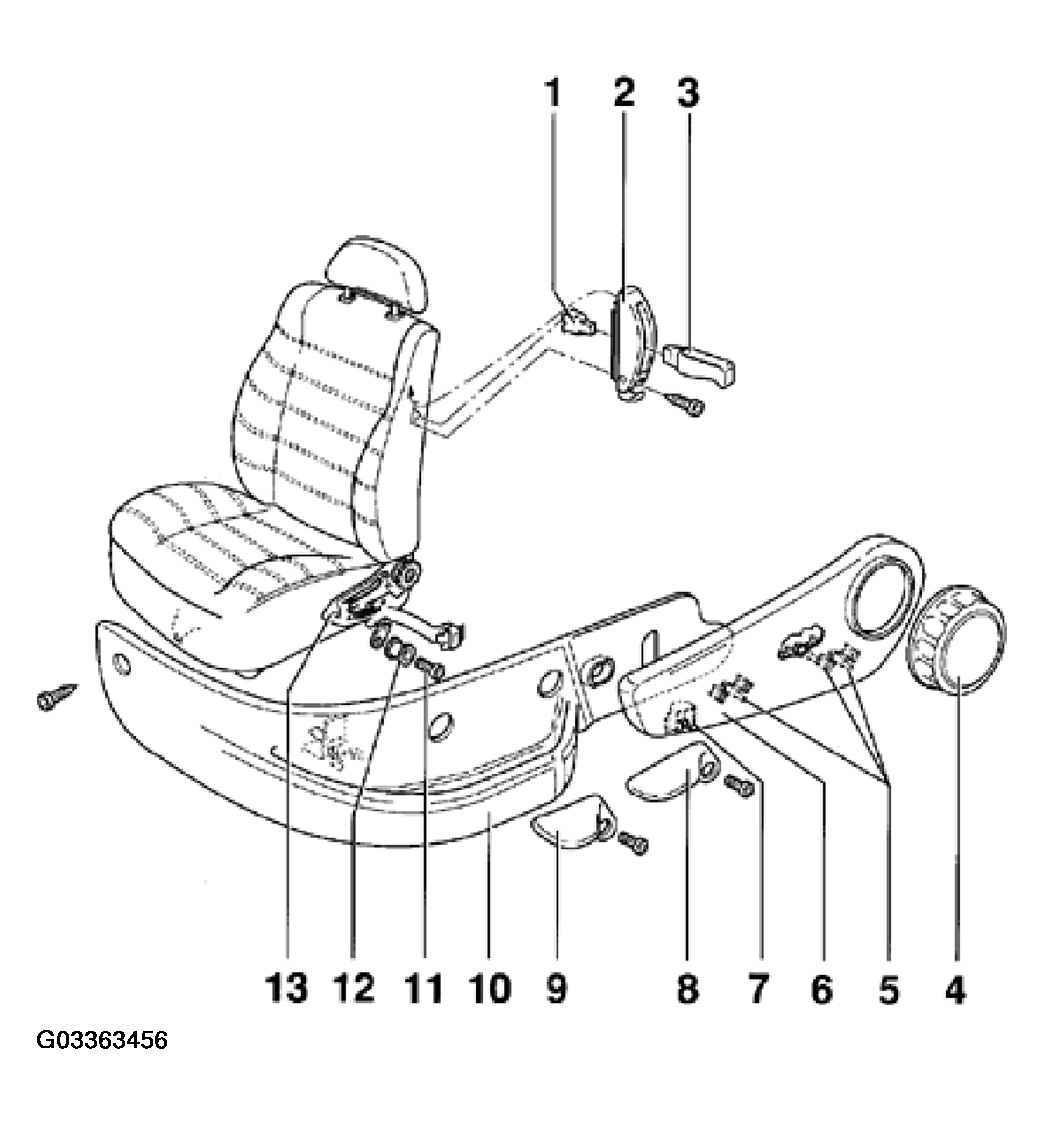

Fig 1: Removing Front Seat Backrest Components
